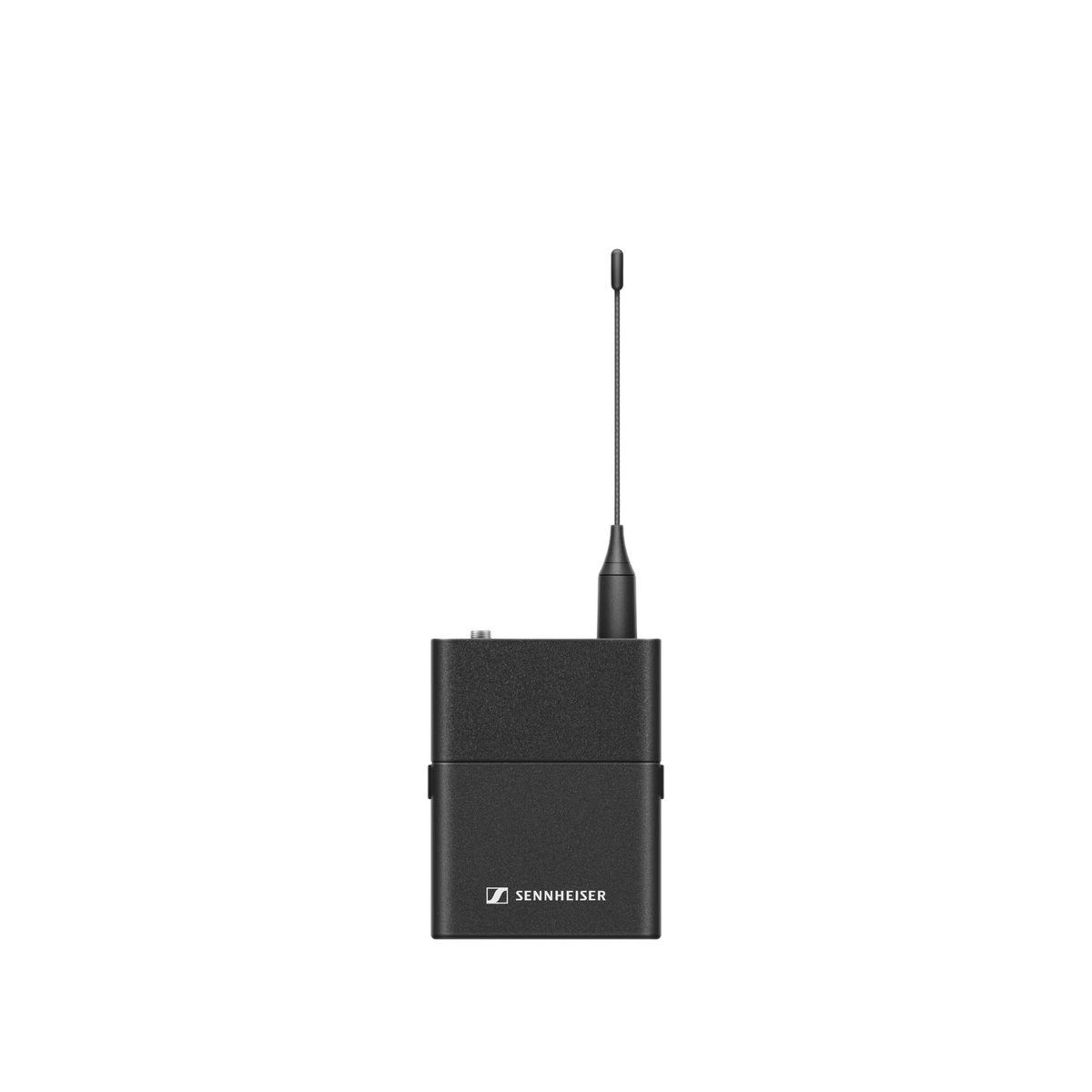

Sennheiser EW-D SK Digital Wireless Bodypack Transmitter Band R1-6

Sennheiser EW-D SK Digital Wireless Bodypack Transmitter Band R1-6

The EW-D SK (V3-4) is a digital UHF bodypack transmitter for use with Evolution Wireless Digital. This versatile and feature-rich wireless system is designed for singers, speakers, and instrumentalists, allowing seamless product pairing and management via the EW-D Smart Assist App. The bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours with 2x provided AA batteries)

Effortless, Worry-Free Wireless

Full control via Bluetooth using the Smart Assist App. Easy setup, monitoring, and troubleshooting—even for beginners. Smart algorithms handle frequency selection and syncing, minimizing dropouts and interference.

Rock-Solid Reliability

The most reliable UHF connection with German-engineered build quality. Professional-grade construction with lightweight, rugged transmitters and receivers. Rack-mountable receivers make it ideal for professional setups.

Pristine Sound Quality

Superior clarity via 24-bit resolution surpasses analog systems. Handles both quiet and loud sources with ease thanks to 134 dB dynamic range. With ultra-low latency of 1.9 ms, sound feels natural and immediate, while evenly spaced frequencies eliminate intermodulation interference.

Future-Proof and Upgradable

Integrates easily with other Evolution Wireless components and scales from simple gigs to large multi-channel stage productions. Compatible with a wide range of Sennheiser mic capsules on the handheld version.

SPECIFICATIONS

General

• Wireless technology: Digital UHF / Bluetooth 5.1
• RF frequency band: 470 to 526 MHz
• Number of RF channel frequencies: 2240
• Max operating range: 328.1 ft / 100 m (line of sight)
• Latency: 1.9 ms
• Encryption: No
• Built-in recorder: No
• Timecode support: No
• Mobile app compatible: No

Transmitters

• Included transmitters: 1x bodypack
• RF output power: 10 mW
• Antenna: Fixed flexible whip
• Input level: Microphone / Instrument / Line
• Audio I/O: 1x 1/8-inch / 3.5 mm locking TRS female input
• Bias/Plug-In and Phantom Power: Bias/Plug-In power unspecified by manufacturer, no phantom support
• USB I/O: No
• Muting: Mute switch
• Auto-level/gain: No
• Frequency response: 20 Hz to 20 kHz
• Sync method: Bluetooth
• Display: Single-LED indicators only

Power

• Transmitter battery type: 2x AA (included) or 1x Sennheiser battery pack (not included)
• Transmitter battery life: 8 hours (alkaline), 12 hours (Sennheiser battery pack)
• AC/DC power adapter: No

Physical

• Environmental resistance: No
• Housing: Metal
• Dimensions: 2.5 x 3.1 x 0.8 in / 63 x 80 x 20 mm (without antennas)
• Weight: 4.2 oz / 120 g (without batteries)

Packaging Info

• Package weight: 0.55 lb
• Box dimensions (LxWxH): 13.8 x 3.2 x 2.9 in
