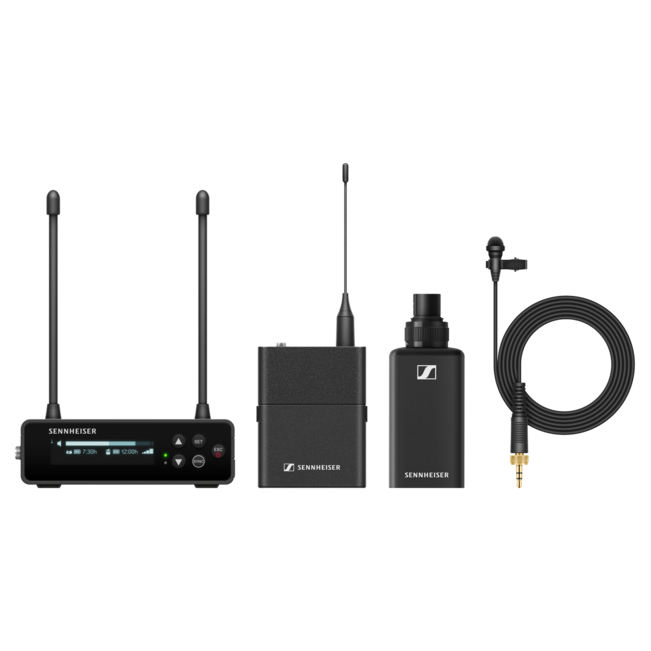

Sennheiser EW-DP ENG SET Camera-Mount Digital Wireless Combo Microphone System - Q1-6

Capture Audio on the Go with the Sennheiser EW-DP ENG SET Camera-Mount Digital Wireless Combo Microphone System - Q1-6

Portable digital UHF receiver for use with EW-D SK bodypack, EW-D SKM-S handheld, or EW-DP SKP plug-on transmitters.

Capture every detail, every time

Purpose-built for content creators, videographers, and newsgatherers looking for a stress-free wireless experience, the Sennheiser EW-DP ENG SET Combo is a camera-mount, fully digital wreless microphone system that utilizes professional UHF transmission to reliably deliver Sennheiser's pristine, broadcast-quality audio directly to your camera

• Creators, Videographers, Newsgatherers
• ME 2 Omni Lav Mic/Bodypack Transmitter
• Plug-On Transmitter/Recorder, +48V
• True-Diversity Camera-Mount Receiver
• Pro Features with Fast & Easy Setup
• 134 dB of Dynamic Range, 24-Bit Audio
• 56 MHz Bandwidth, Equidistant Grid
• Setup/Operate from Phone via Bluetooth
• Battery: 12-Hr Transmitter/7-Hr Receiver
• Expandable to 58 Mic Channels/330' Range

SPECIFICATIONS

• Digital UHF Wireless Technology
• Number of RF Channel Frequencies: 2240
• Included Transmitters: 1 x Bodypack, 1 x Plug-On
• Diversity: Intelligent Switching Diversity
• RF Frequency Band: 470 to 526 MHz
• RF Bandwidth: 56 MHz
• Frequency Step Size: 25 kHz
• RF Channel Scanning: Auto-Scan
• Max Operating Range: 328.1' / 100 m (Line of Sight)
• Max Transmitters per Band: 58
• Built-In Recorder: Yes
• Mobile App Compatible: Yes (Android & iOS), App Name: Sennheiser Smart Assist
• Functionality: Adjust Settings, Remote Control, Setup
• Bluetooth 5.1 LE, Operating Distance: 120' / 36.6 m (Transmitter Sync, App Control)
• Sample Rate/Resolution: 24-Bit
• Latency: 1.9 ms
• Dynamic Range: 134 dB
• Encryption: No
• Receiver Type: Camera-Mount
• Mounting Options: Belt Clip, Shoe-Mount, 1/4"-20 Female (with Included Hardware)
• Antenna: 2 x 1/4 Wave Rod, Fixed
• Number of Audio Channels: 1
• Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output and Headphone Output (Locking)
• Audio Output Level: 1/8" / 3.5 mm Output: 2 dBV (Max, Unbalanced)
• Frequency Response: 20 Hz to 20 kHz ±3 dB
• USB/Lightning Connectivity: 1 x USB-C Female (Bus Power, Charging)
• RF Output Power: 10 mW (EIRP)
• Power Requirements: Battery, Bus Power (USB)
• Battery Type: 2 x AA, 1 x Sennheiser Battery Pack
• Approx. Battery Life: 7 Hours
• Display & Indicators: 1 x Backlit OLED
• Operating Temperature: 14 to 131°F / -10 to 55°C
• Operating Humidity: 5 to 95%
• Dimensions: 3.4 x 2.6 x 1.1" / 86 x 67 x 28 mm
• Weight: 0.3 lb / 140 g
• Transmitter Type: Bodypack
• RF Output Power: 10 mW (ERP), Up to 10 mW (EIRP)
• Frequency Response: 20 Hz to 20 kHz
• Antenna: 1 x Flexible Whip, Fixed (Beltpack)
• Approx. Battery Life: 8 Hours (Alkaline), 12 Hours (Sennheiser Battery Pack)
• Microphone Type: Lavalier, Color: Black
• Sound Field: Mono, Capsule: Electret Condenser
• Polar Pattern: Omnidirectional
• Frequency Range: 50 Hz to 18 kHz
• Maximum SPL: 130 dB SPL
• Sensitivity: 17 mV/Pa at 1 kHz
• Output Connector: 1 x 1/8" / 3.5 mm TRS Male (Lockable)
• Cable Length: 5.2' / 1.6 m
• Operating Voltage: 7.5 V
• Transmitter 2 Type: Plug-On
• RF Output Power: 10 mW (ERP), Up to 10 mW (EIRP)
• Phantom Power: +48 V
• Package Weight: 2.265 lb
• Box Dimensions (LxWxH): 12.4 x 7.5 x 2.9"

Manufacturer: Sennheiser
Model: EW-DP ENG SET (Q1-6)
SKU: I737639-N-1-WHXD
UPC: 615104375789
