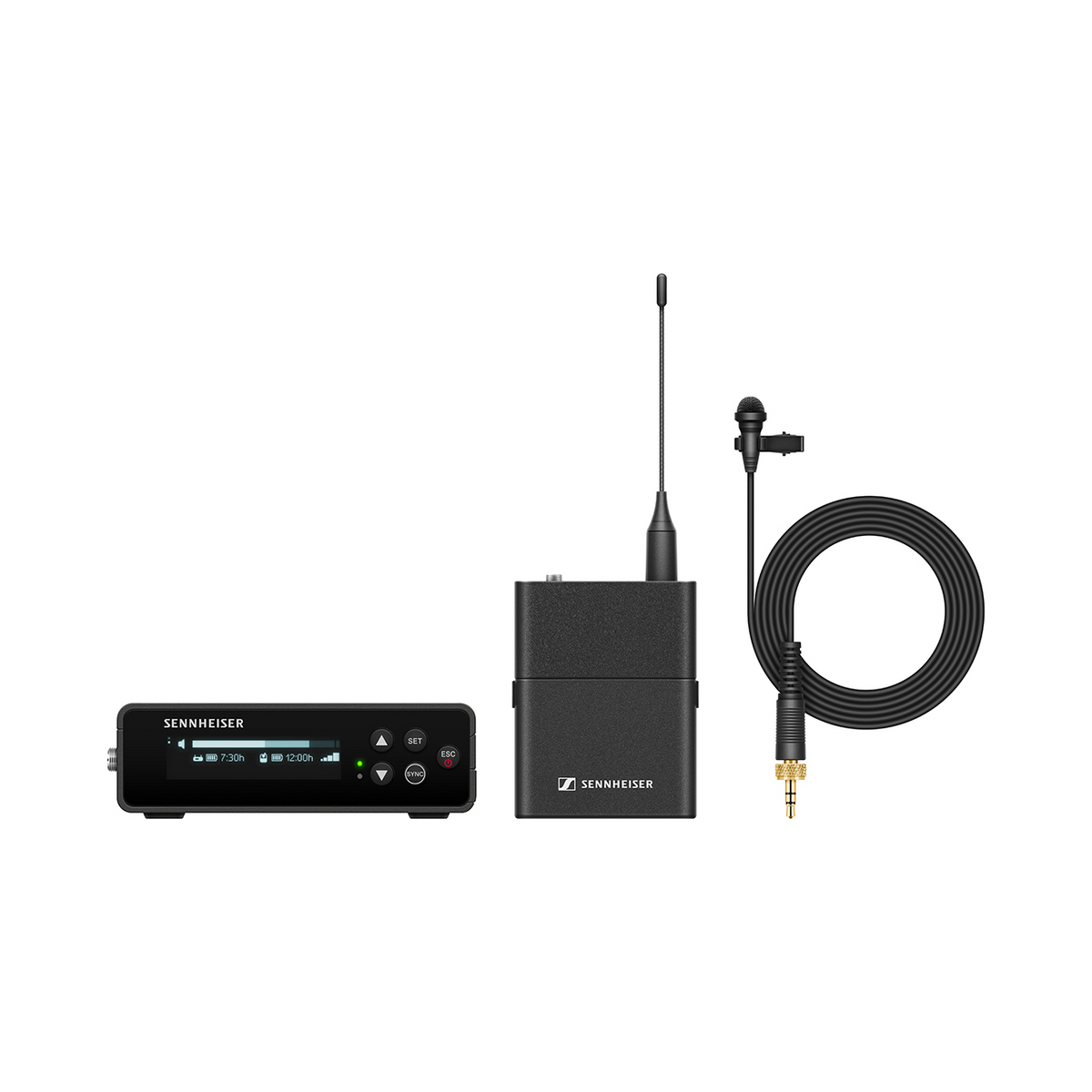

Sennheiser EW-DP ME2 SET Portable Digital UHF Lavalier wireless System

Full-Range Sound - The Sennheiser EW-DP ME2 SET Portable Digital UHF Lavalier wireless System - Q16 Band

EW-DP delivers an industry leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters. At the heart of EW-DP is a compact digital receiver that provides an intuitive user experience for all. Bluetooth synchronization and system control via our Smart Assist app help you save time and energy on set. A front facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location. Choose between the ME 2 omnidirectional lavalier which delivers clear, intelligible dialog or the ME 4 cardioid lavalier which helps to isolate your speech in noisier environments.

• Fully digital UHF wireless microphone system for video applications
• Integrated Bluetooth for synchronization and control
• Smart Notifications for troubleshooting and system guidance
• Intelligent battery management provides operating time (hours: minutes)
• Extended battery life: up to 12h on transmitter, 7h on receiver
• Magnetically stackable components for versatile mounting
• Industry leading 134 dB input dynamic range for distortion free transmission
• Up to 56 MHz bandwidth for flexibility in any RF environment
• Exceptionally low latency (1.9 ms)
• External charging and powering via USB-C (receiver only)
• Smart Assist app for monitor and control
• Optional plug-on transmitter features XLR & 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

SPECIFICATIONS

System

• Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
• Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Dynamic Range: 134 dB
• System Latency: 1.9 ms
• Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Relative Air Humidity: 5 - 95 % (non-condensing)

EW-DP EK

• Input Voltage: ~ 1.8 - 4.35 V
• Input Current
• Typ. < 250 mA / Max. < 400 mA (BA 70)
• Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
• < 300 mA@5 V (USB-C standalone)
• Transmit Power (radiated): BLE: max. 10 mW EIRP
• Audio Output Power: < 2 dBV max. (high level) / < 4dBU max (high level)
• Headphone Output: < 50 mW into 16 Ohms
• Dimensions: 86 x 67 x 28 mm (3.39 x 2.64 x 1.1 inches)

EW-D SK (Bodypack Transmitter)

• Input Voltage: 2.0 - 4.35 V
• Input Current: < 300 mA
• Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied Bandwidth: 200 kHz

ME 2 (Lavalier Microphone)

• Transducer Principle: pre-polarized condensor microphone
• Pick-Up Pattern: Omni-directional
• Sensitivity in free field, no load (1kHz): 17 mV/Pa
• Max. SPL at 1 kHz: 130 dB
• Frequency Response: 50 to 18,000 Hz
• Equivalent noise level A-weighted: 32 dB
• Connector: 3.5 mm jack
• Cable Length: approx. 1.60 m (62.99 inches)
• Supply Voltage: 7.5 V

Manufacturer: Sennheiser
Model: EW-DP ME 2 SET (Q1-6)
SKU: I737636-N-0-WHXX
UPC: 615104375758
