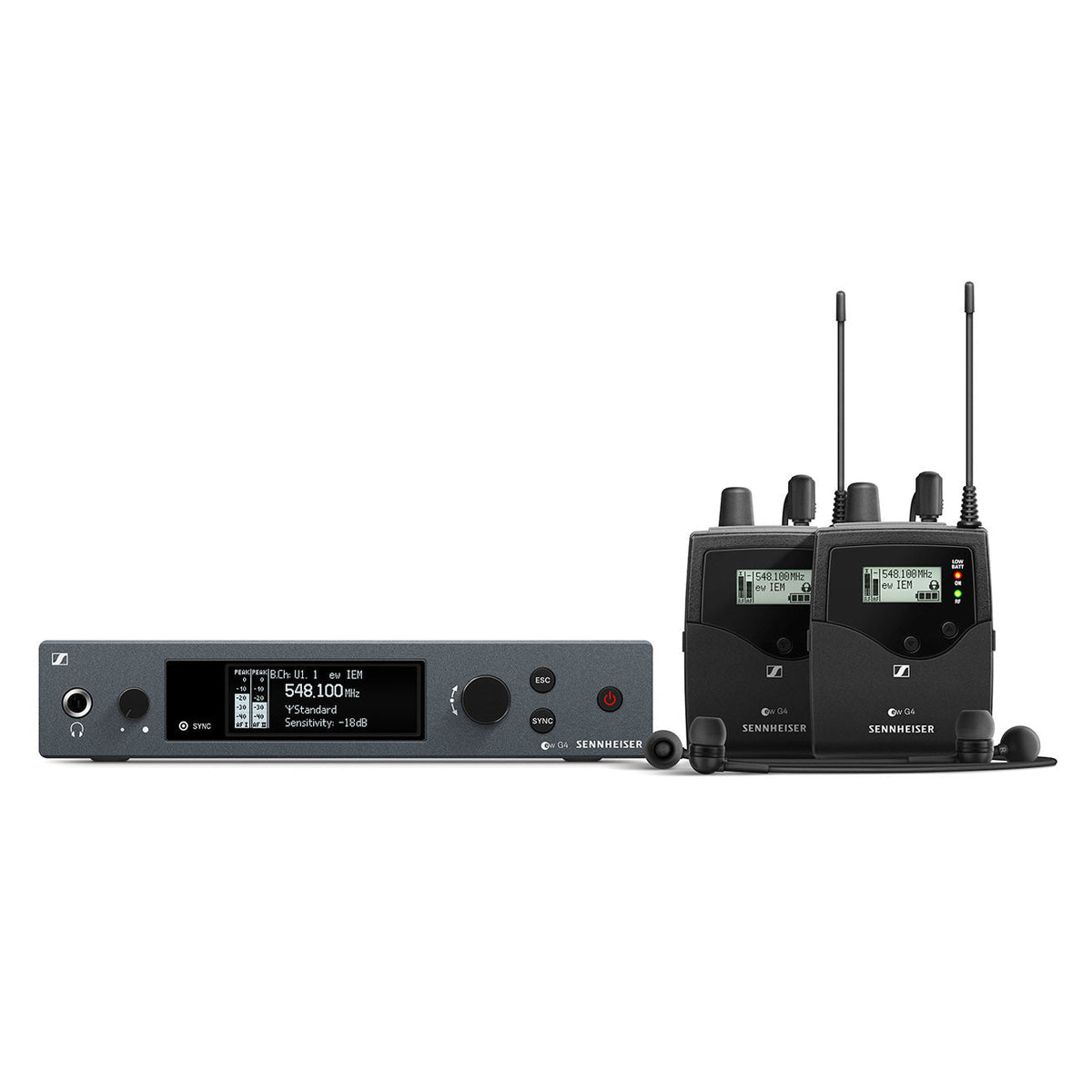

Sennheiser EW IEM G4-TWIN-A1 Wireless Monitoring System

Rugged, All-in-One Design - The Sennheiser EW IEM G4-TWIN-A1 Wireless Monitoring System

Frequency Range: 470 - 516 MHz (A1)

Get Full control over your performance and your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience not just for your audience, but also for you. The robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared/light;
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters (300 feet)
• High RF output power (up to 50 mW) depending on country regulations

SPECIFICATIONS

SR IEM G4

• Dimensions: Approx. 202 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <0.9 %
• Weight: Approx. 980 g
• Audio Input: 2x XLR-3 1/4-inch (6.3 mm) jack combo socket, electronically balanced
• Audio Output: 1/4-inch (6.3 mm) stereo jack socket, balanced
• Signal-to-Noise Ratio: >90 dB
• RF Output Power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Modulation: Wideband FM stereo (MPX pilot tone)
• Power Supply: 12 V DC
• Current Consumption: Max. 350 mA
• Max. Input Voltage: +22 dBu
• AF Frequency Response: 25 Hz to 15 kHz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: ±10 ppm

EK IEM G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight (incl. batteries) approx. 125 g
• Signal-to-noise ratio: Approx. 90 dBA
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Approx. 4 to 6 hours (depending on volume level)
• Modulation: Wideband FM
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
• Adjacent Channel Rejection: Typically ≥ 65 dB
• Audio-Output-Power: 2 x 100 mW at 32 Ω
• Intermodulation Attenuation: Typically ≥ 70 dB
• Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
• Powering: 3 V battery, 2.4 V rechargeable battery
• RF Sensitivity: < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
• Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
• Bass Boost: +8 dB at 8 kHz
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: ≥ 80 dB
