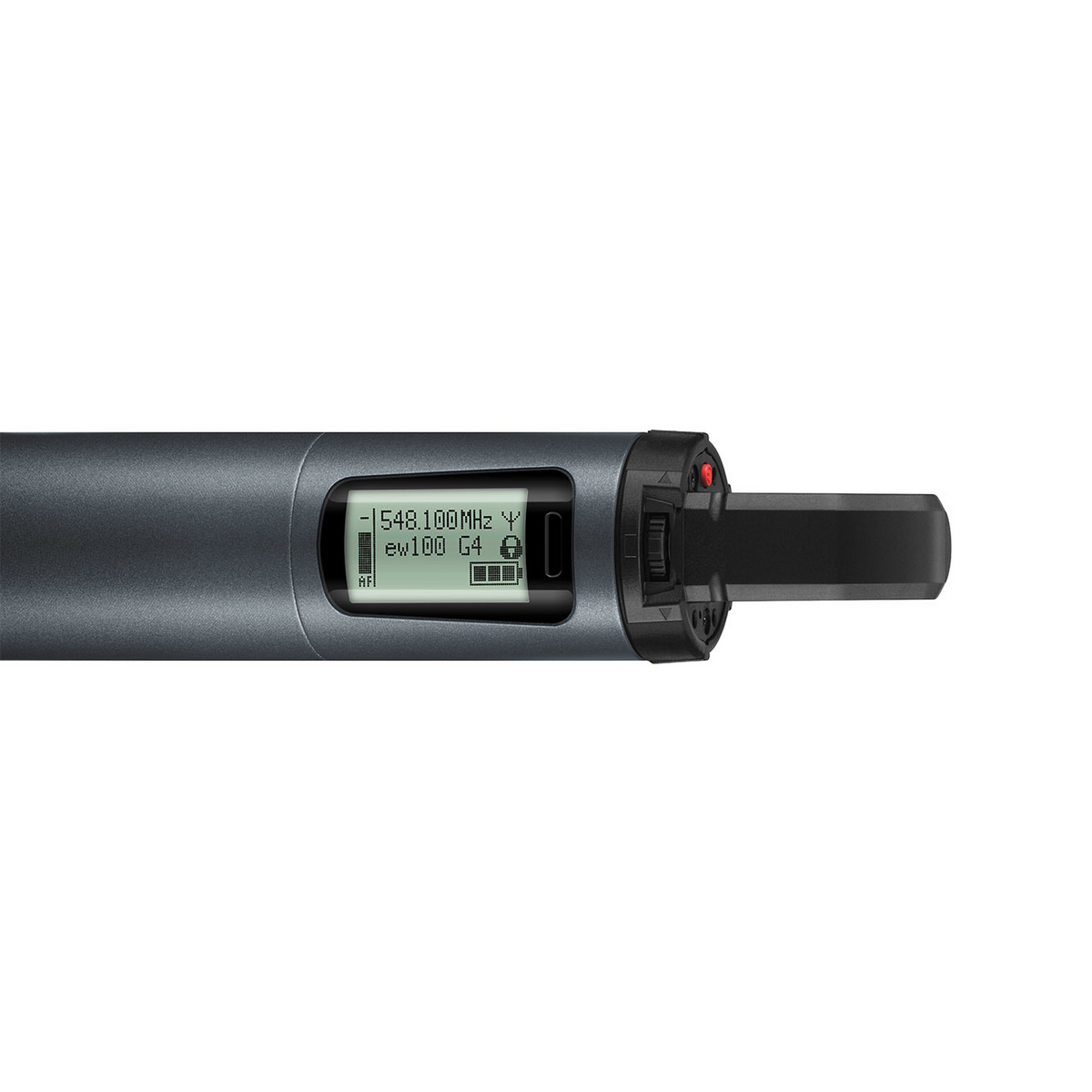

Sennheiser SKM 100 G4-A1 Handheld Transmitter - A1-Band

Lightweight and Powerful - The Sennheiser SKM 100 G4-A1 Handheld Transmitter - A1-Band

The SKM 100 G4-A1 is handheld transmitter with aluminum housing for evolution wireless G4 100 Series systems.

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SPECIFICATIONS

• Frequency Range: A1: 470 - 516 MHz
• Dimensions: Approx. Ø 50 x 265 mm
• Compander: Sennheiser HDX
• THD, Total Harmonic Distortion: ≤ 0.9 %
• Weight (incl. batteries): Approx. 450 g
• Signal-to-Noise Ratio: ≥ 110 dBA
• RF output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 h
• Modulation: Wideband FM
• Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current Consumption: At nominal voltage: typ. 180 mA
• With Transmitter Switched O: ≤ 25 μA
• Input Impedance: 40 kΩ
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF Frequency Response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency Stability: ≤ ±15 ppm
