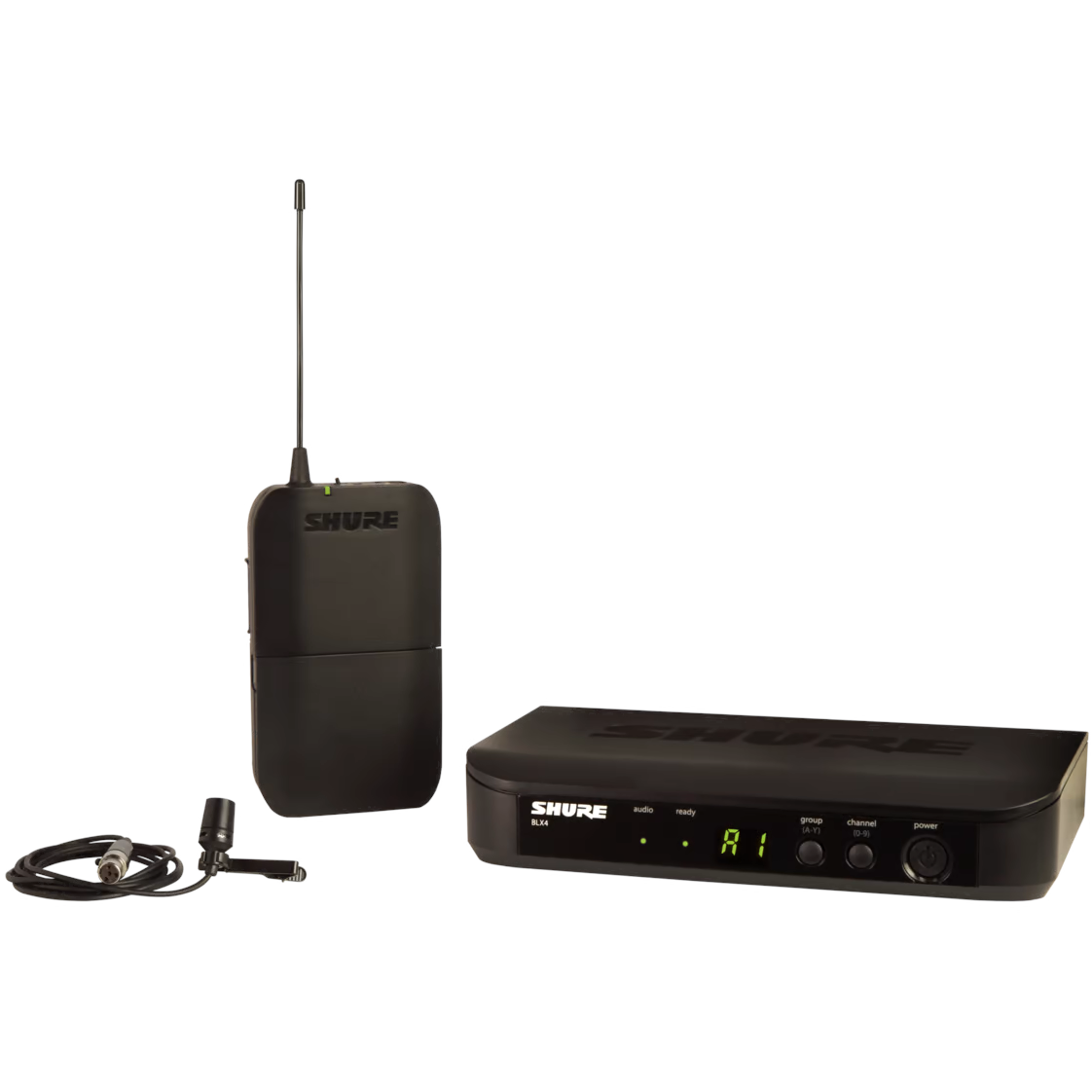

Shure BLX14/CVL Lavalier Wireless Presenter System - H11 Band

Cut Through the Noise with the Shure BLX14/CVL Lavalier Wireless Presenter System - H11 Band

Frequency Band: H11 (572 - 596 MHz)

The entry to Shure quality lavalier microphones for spoken word applications. Features analogue wireless transmission.

• Up to 12 compatible systems per frequency band (region dependent)
• Microprocessor-controlled internal antenna diversity
• One-touch QuickScan frequency selection quickly locates the best frequency
• 1/4-inch and XLR audio outputs
• Two color audio status indicator LED

CVL Lavalier Microphone

For professional presentations requiring a microphone that is heard but not seen, the Centraverse CVL Lavalier Condenser Microphone offers a compact clip-on design and simple, no-nonsense setup. The unidirectional cardioid polar pattern rejects unwanted sound for superior audio quality and vocal reproduction. Precision-engineered for years of use with all Shure wireless systems.

• Miniature lavalier microphone with included tie clip offers low visibility and hands-free use
• Permanently charged electret condenser element provides clear vocal reproduction
• Unidirectional cardioid polar pattern rejects unwanted noise for improved sound quality
• Included windscreen reduces plosives, wind, and breath sounds
• Tailored frequency response optimized for speaking and presentations
• TA4F (TQG) connector seamlessly integrates with Shure wireless systems
• Legendary Shure precision engineering for durability and performance

SPECIFICATIONS

General

• Working Range: 91 m (300 ft) Line of Sight
• Audio Frequency Response: 50 to 15,000 Hz
• Total Harmonic Distortion: Ref. ±33 kHz deviation with 1 kHz tone, 0.5%, typical
• Dynamic Range: 100 dB, A-weighted, typical
• Operating Temperature: -18°C (0°F) to 57°C (135°F)
• Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output

BLX1

• Audio Input Level:
• max: -16 dBV maximum
• min (0 dB) +10 dBV maximum
• Gain Adjustment Range: 26 dB
• Input Impedance: 1 MΩ
• RF Transmitter Output: 10 mW, typical
• Dimensions: 4.33 x 2.52 x 0.83 inches (110 x 64 x 21 mm)
• Weight: 2.6 oz. (75 g), without batteries
• Housing: Molded ABS
• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life: Up to 14 hours (alkaline)

CVL Lavalier Microphone

• Weight: 0.055 lbs / 25 g
• Transducer Type: Condenser
• Polar Pattern: Cardioid
• Frequency Range: 60 Hz - 12 kHz
• Sensitivity: -43.50 dBV/Pa
• Equivalent Selfnoise: 22 dB(A)
• Maximum Sound Pressure: 139 dB
• Impedance: 600 Ω
• Switchable Low Cut: no
• Output Connectors: TQG (TA4F, 4-Pin Mini)
• Attenuation PAD: no
• Interchangeable Capsule: no
• Requires Phantom Power (VDC): +5v DC, 10v Max
• Cable: 50 inches / 1.3 m
