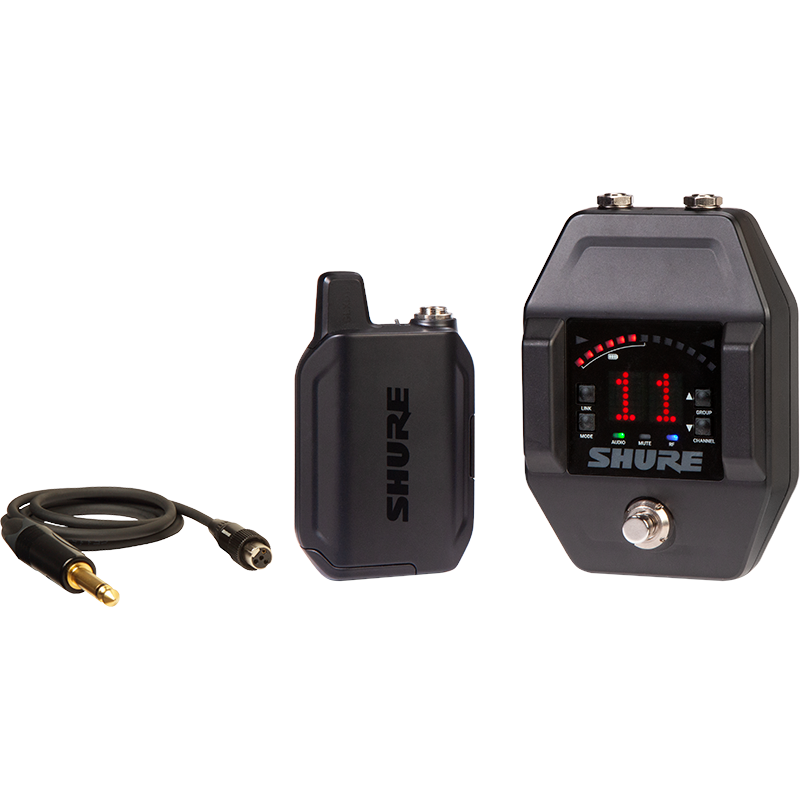

Shure GLXD16+ Digital Wireless Guitar Pedal System

Legendary Performance - The Shure GLXD16+=-Z3 Digital Wireless Guitar Pedal System

Frequency Band: Z3 (2.4, 5.8 GHz)

The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easilyswitch between two or more transmitters linked to a single receiver.

• Exceptional digital audio clarity
• Compatible with multiple legendary microphone options
• Automatically moves away from interference without audio interruption
• Rechargeable battery delivers up to 12 hours of runtime
• Rock-solid RF performance for multiple system installations
• License-free frequency range

SPECIFICATIONS

GLXD6+ Dual Band Guitar Pedal Receiver

• Configuration: Receiver
• Analog/Digital: Digital
• Number of Receivers: 1
• Receiver Frequency Range: 2.4 GHz, 5.8 GHz
• Range: Up to 200 ft. Line-of-sight
• Antenna Type: Detachable
• Front Panel Display: Yes
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range: 120 dB (A weighted)
• Outputs: 2 x 1/4-inch
• Power Source: 9V DC power supply (included)
• Dimensions: 1.89 x 3.7 x 5.4 inches
• Weight: 1.23 lbs.

Shure GLXD1+ Dual Band Bodypack Transmitter

• System Operating Range
• Indoors: Up to 30 m (100 feet) typical, with a maximum of 60 m (200 ft.) under ideal conditions
• Outdoors: Up to 20 m (65 feet) typical, with a maximum of 50 m (165 ft.) under ideal conditions
• Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
• Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
• Dynamic Range: 120 dB, A-weighted
• RF Sensitivity: -88 dBm, typical
• Total Harmonic Distortion: 0.07%, typical
• RF Output Power: 10 mW E.I.R.P. max
• Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range
• Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
• Battery Life: Up to 12 hours
• Power Requirements: 3.7 V Rechargeable Li-Ion
• Housing Cast: Metal, Black Powdercoat
• Input Impedance: 900 kΩ
• RF Output Power: 10 mW E.I.R.P. max
• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced Maximum Input Level (1 kHz at 1% THD): +8.4 dBV (7.5 Vp-p)
• Antenna Type: Dual Band Internal Monopole
• Dimensions: 4.5 x 2.6 x 1.1 inches (115 x 66.94 x 28.51 mm), without antenna
• Weight: 5.4 oz (153.1 g), without battery
