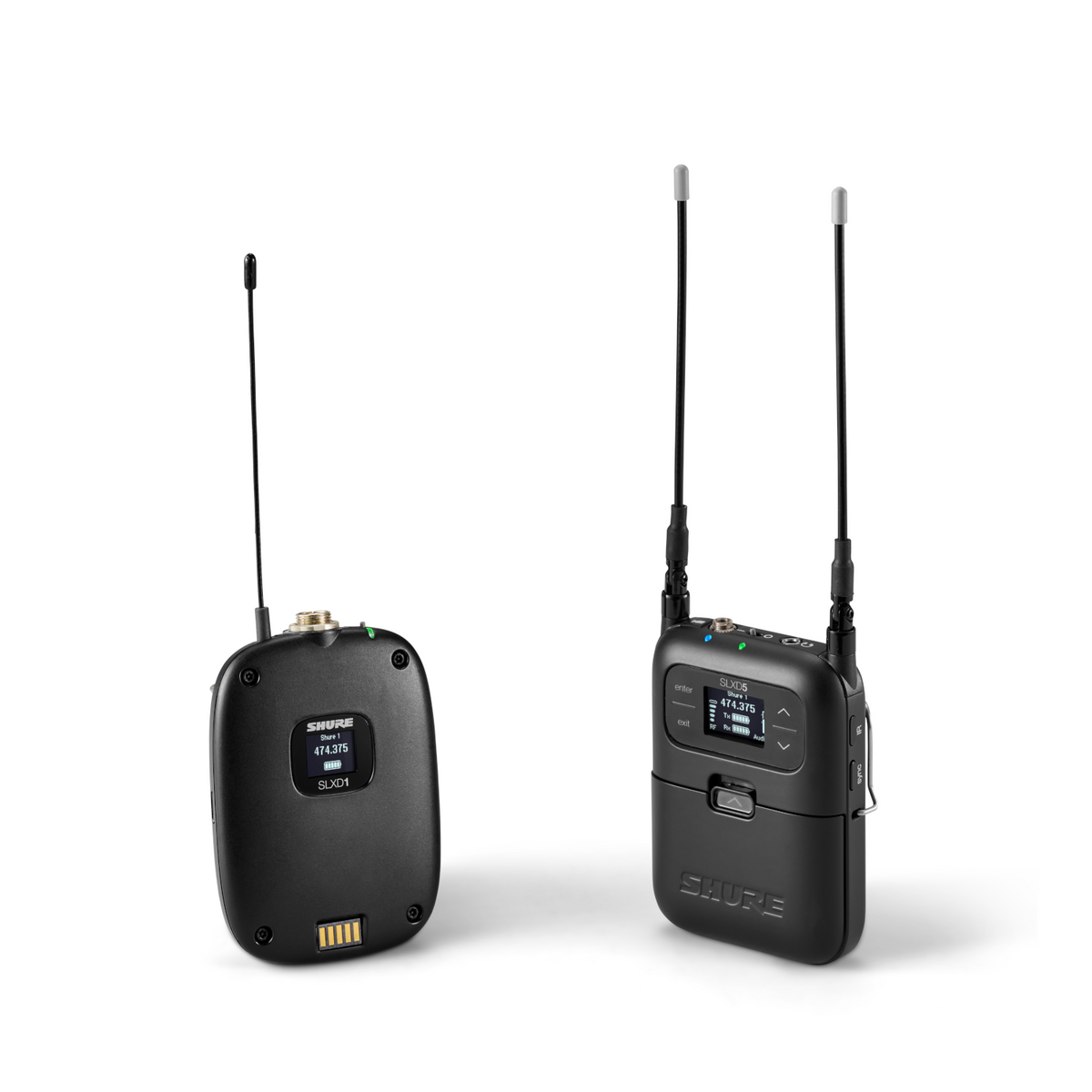

Shure SLXD15=-J52 Wireless System with SLXD1 Body Pack Transmitter

Rock-Solid Performance - The Shure SLXD15=-J52 Wireless System with SLXD1 Body Pack Transmitter

Frequency Band: 558 - 616 Mhz (J52)

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

• (1) x SLXD1 Digital Wireless Bodypack Transmitter
• (1) x SLXD5 Single-Channel Portable Digital Wireless Receiver

SLXD1 Digital Wireless Bodypack Transmitter

SLX-D Digital Wireless delivers transparent, 24-bit digital audio and rock solid RF performance with easy setup and rechargeability options in a suite of versatile wireless system configurations. Featuring industry-leading digital wireless technology and design, the SLXD1 easily syncs with a wireless receiver. TQG connectivity to a variety of microphone options guarantees the right solution for a wide range of applications, from day-long conference to nighttime performances.

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• TQG connectivity offers a variety of microphone options
• Ergonomic, durable plastic construction

Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter and a zippered carrying pouch.

• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Rugged metal construction

SPECIFICATIONS

SLXD1 Digital Wireless Bodypack Transmitter

• Connector: 4-Pin male mini connector (TA4M)
• Configuration: Unbalanced
• Impedance: 1 MΩ
• Maximum Input Level 8.2 dBV (2.57 Vrms, 7.27 Vpp)
• Preamplifier Equivalent Input Noise (EIN): –118 dBV
• Antenna Type: 1/4 Wave
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Propietary Digital
• Power: 1 mW/10 mW
• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 3.86 × 2.68 × 1.0 inches (98 × 68 × 25.5 mm)
• Weight: 3.1 oz (89 g)

Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

• Spurious Rejection: >75 dB
• Impedance 50 Ω
• Phantom Power Protection: Yes
• Antenna Type: 1/4 Wave Whip
• Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
• Connector Type: 1/8" (3.5 mm), ×2
• Configuration
• Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
• Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
• Impedance (Camera)
• Balanced (Mono) Line: 450 Ω
• Balanced (Mono) Mic: 240 Ω
• Dual Mono Line: 400 Ω
• Dual Mono Mic: 200 Ω
• Full Scale Output Camera (Balanced Line): 15 dBV
• Headphone: 13 mW @ 64 Ω Load
• Dimensions: 4.21 × 2.68 × 1.0 inches (107 × 68 × 25.3 mm)
• Weight 1.8 lbs (182 g)
• Housing: Aluminum
