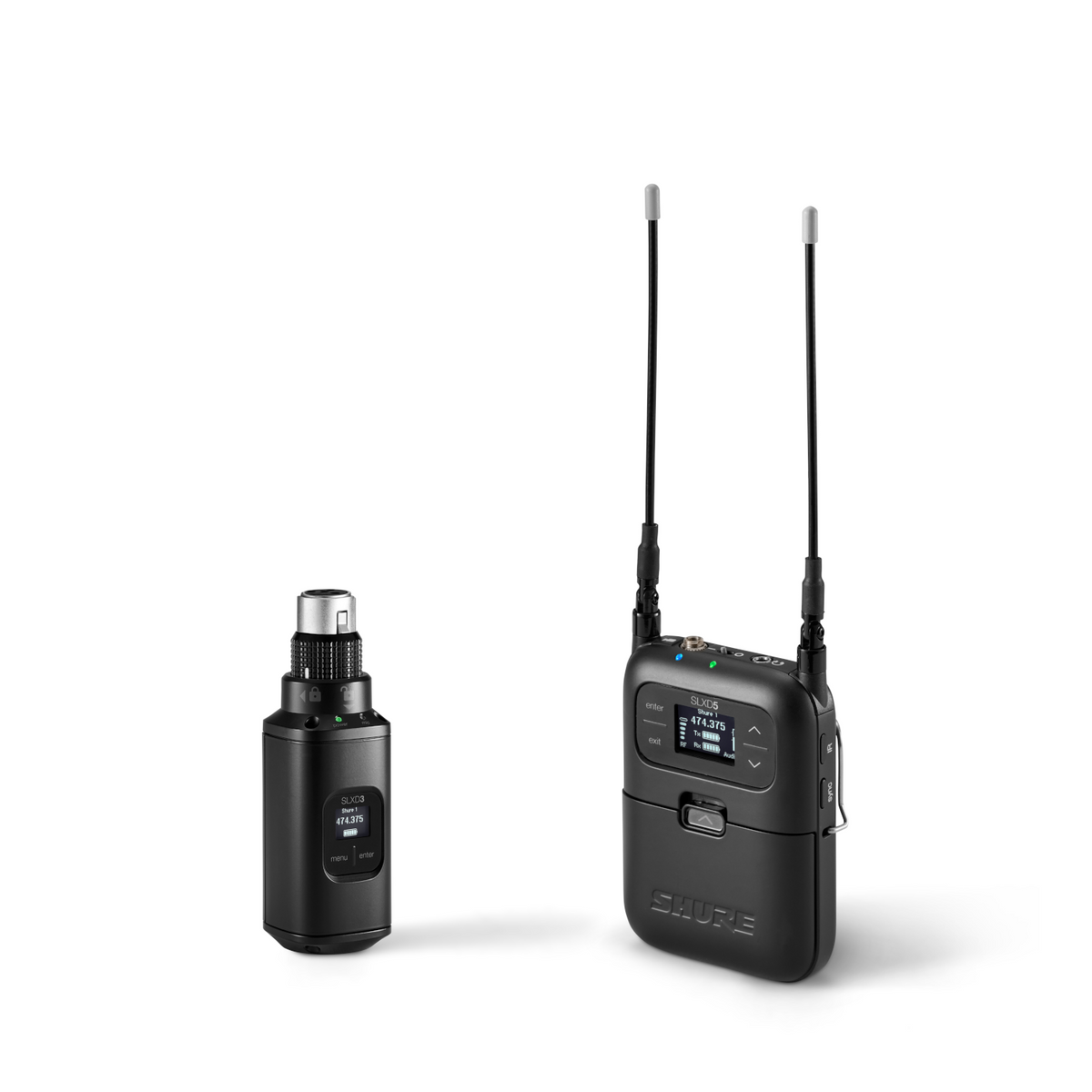

Shure SLXD35=-H55 Single-Channel Portable Receiver and Transmitter

Come in Clear with the Shure SLXD35=-H55 Single-Channel Portable Receiver and Transmitter

Frequency Band: 514 - 558 Mhz (H55)

Your performance should never be in question. Whether presenting, educating, praising or entertaining, your relationship with your audience is singular. With SLX-D Digital Wireless you can stand confidently on a strong foundation and build the wireless installation to match ongoing demands, from day-long conference to nighttime performances.

• (1) x SLXD3 Digital Wireless Plug-On Transmitter
• (1) x SLXD5 Single-Channel Portable Digital Wireless Receiver

Shure SLXD3 Digital Wireless Plug-On Transmitter

SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection. Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries, zippered carrying pouch and a leather protective sleeve with an integrated belt clip.

• Convert any XLR source for use within SLX-D wireless systems
• Provides +12–48 VDC phantom power for use with condenser microphones
• Patented locking mechanism for secure, wobble-free connection
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Digital predictive switching diversity
• Switchable 1/10/30 mW power levels (region- and band-dependent)
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over scan and IR sync
• Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
• Rugged metal construction
• Microphone and batteries not included

Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD5 Portable Receiver, a pair of AA alkaline batteries, a non-conductive cold shoe mount adapter and a zippered carrying pouch.

• Powerful, portable digital wireless receiver for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 118 dB dynamic range
• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Bright OLED display screen for key system function readouts and remaining battery life
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Rugged metal construction

SPECIFICATIONS

Shure SLXD3 Digital Wireless Plug-On Transmitter

• Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
• Dimensions: 4.9 × 1.6 × 1.6 inches (126 × 41 × 41 mm)
• Weight 7.0 oz. (200 g)
• Housing: Aluminum, Zinc Alloy, PC/ABS
• Configuration: XLR
• Maximum Input Level: 1 kHz @ 1% THD
• Pad: -12 dB: 20.5 dBV
• 0 dB: 8.5 dBV
• Boost: +12 dB: -3.5 dBV
• Phantom Power: +48 V (7 mA maximum), +12 V (15 mA maximum)
• Antenna Type: Dipole
• Occupied Bandwidth: <200 kHz
• Modulation Type: Shure Propietary Digital
• Power: 1 mW/10 mW/30 mW
• Specific Absorption Rate (SAR): <0.17 W/kg

Shure SLXD5 Single-Channel Portable Digital Wireless Receiver

• Spurious Rejection: >75 dB
• Impedance 50 Ω
• Phantom Power Protection: Yes
• Antenna Type: 1/4 Wave Whip
• Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
• Connector Type: 1/8" (3.5 mm), ×2
• Configuration
• Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
• Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
• Impedance (Camera)
• Balanced (Mono) Line: 450 Ω
• Balanced (Mono) Mic: 240 Ω
• Dual Mono Line: 400 Ω
• Dual Mono Mic: 200 Ω
• Full Scale Output Camera (Balanced Line): 15 dBV
• Headphone: 13 mW @ 64 Ω Load
• Dimensions: 4.21 × 2.68 × 1.0 inches (107 × 68 × 25.3 mm)
• Weight 1.8 lbs (182 g)
• Housing: Aluminum
