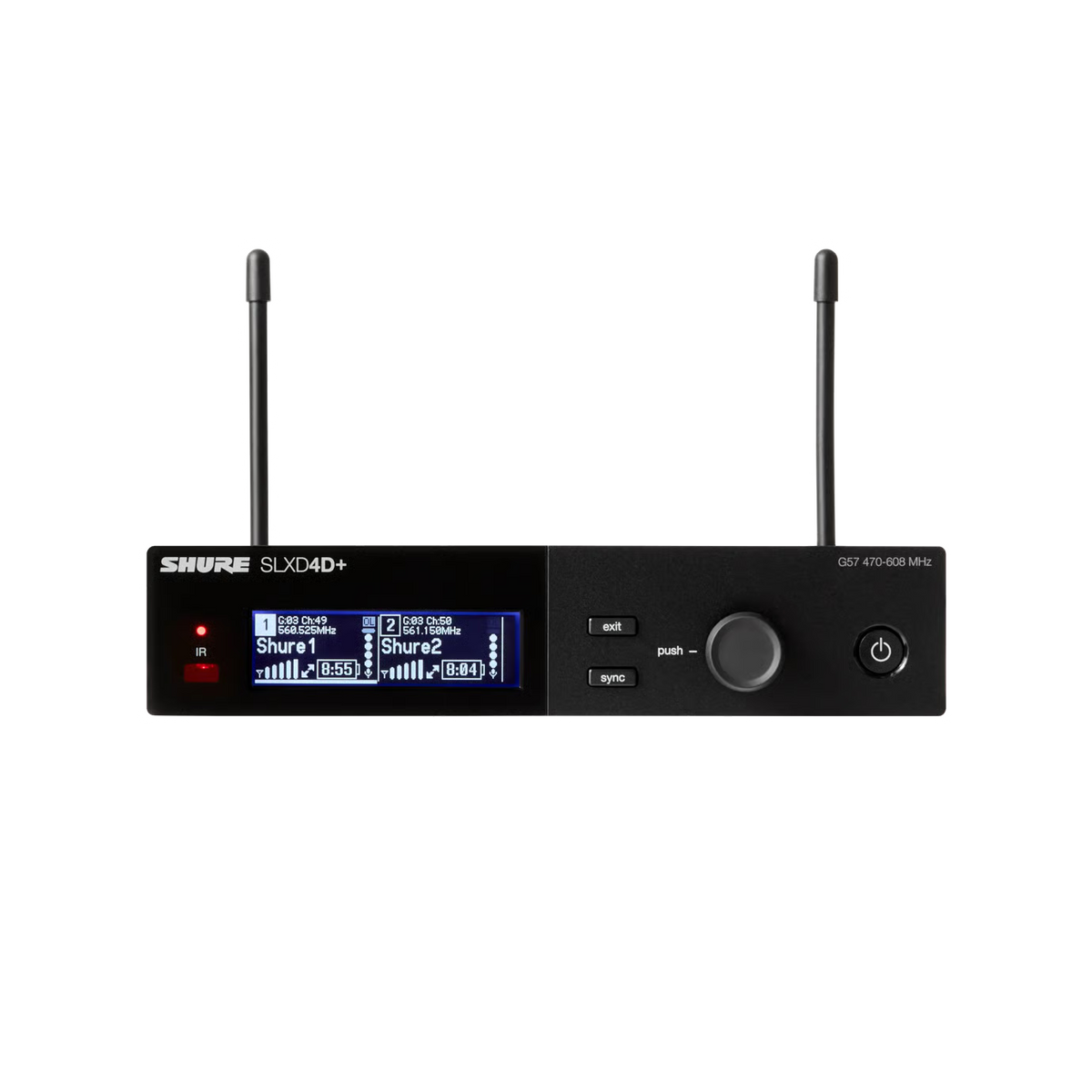

Shure SLXD4D+ Dual-Channel Half-Rack Receiver - G57 Band

Hands-Free Wireless Oversight with the Shure SLXD4D+ Dual-Channel Half-Rack Receiver - G57 Band

Frequency Band: G57 (470 - 608 MHz)

The SLXD4D+ dual channel half-rack receiver unlocks a new world of hands-free oversight and management for seasoned volunteers and pro engineers alike, that delivers wireless excellence wherever required. Wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link.

• Wide band frequency range, cross-compatible with all SLXD products and frequency bands H55, J52, and G58
• Trusted by professionals, engineered for everyone
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage
• Up to 11 simultaneous systems in 6 MHz TV bands
• Up to 14 simultaneous systems in 8 MHz TV bands
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, receiver and system parameters can be managed remotely, including:
• Changing the transmitter frequency once an open frequency is identified
• Adjusting power output level
• Locking and unlocking transmitter controls
• Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver to automatically reduce unwanted audio feedback
• Each SLX-D+ component and system ships with AES-256 encryption for complete, secure peace of mind
• Dual channel half-rack design with rugged metal construction

Manage interference, scan for new channels, and update for clear transmission automatically. Also monitor and configure via a paired mobile device for fast control in the field.

SPECIFICATIONS

• Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
• Weight: 2 lbs (900 g) (without antennas)
• Housing: Galvanized Steel
• Power Requirements: 15 VDC @ 360 mA (supplied by external power supply, tip positive)

• Spurious Rejection: >75 dB (typical)
• Connector Type: BNC
• Impedance: 50 Ω

• Gain Adjustment Range: –18 to +42 dB in 1 dB steps
• Configuration:
• 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
• XLR: Balanced (1=ground, 2=audio +, 3=audio –)
• Impedance:
• 1/4" (6.35 mm): 1.1 kΩ (550 Ω unbalanced)
• XLR (line): 500 Ω (250 Ω unbalanced)
• XLR (mic): 150 Ω
• Full Scale Output:
• 1/4" (6.35 mm): +18 dBV differentially (+12 dBV single)
• XLR (LINE setting): +18 dBV
• XLR (MIC setting): –12 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection:
• 1/4" (6.35 mm): Yes
• XLR: Yes

• Network Interface: Single Port Ethernet 10/100 Mbps
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 ft)
