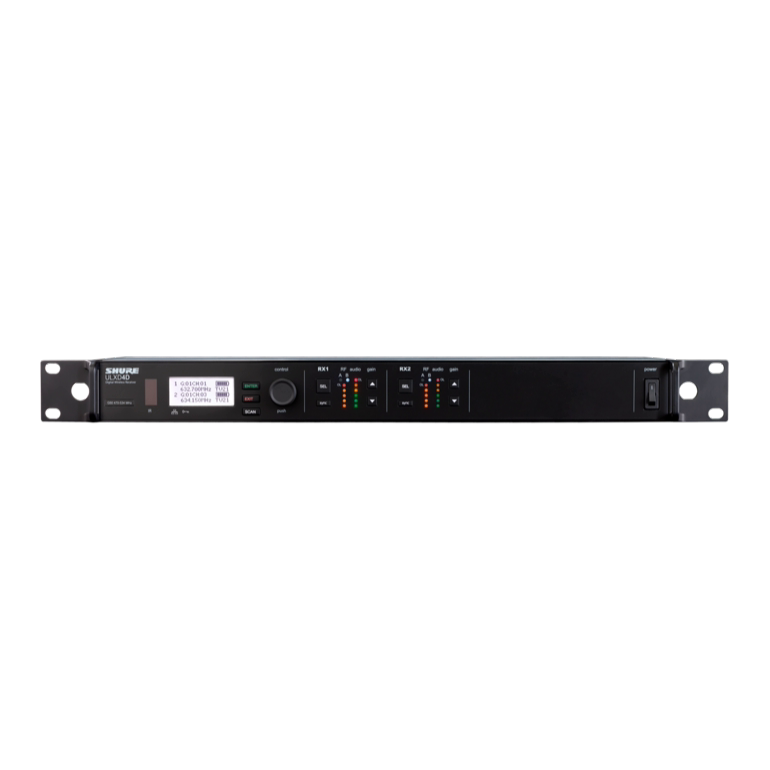

Shure ULXD4D Digital Dual-Channel Wireless Receiver - G50 Band

Cut through the Noise with the Shure ULXD4D Digital Dual-Channel Wireless Receiver - G50 Band

Frequency Band: G50 (470 - 534 MHz)

The Shure ULXD4D Dual Channel Digital Wireless Receiver offers two channels of uncompromising audio quality, RF signal stability and efficiency, and advanced setup features in a single rack unit. Rugged, yet lightweight and compact, the all-metal chassis houses two independent receivers, each with its own audio and RF meters, gain control, and receiver outputs that can be either direct or summed for flexible signal routing. With RF cascade and two Ethernet ports, units easily can share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante digital networking allows multiple channels of audio to be transmitted and received over a single Ethernet cable. When more compatible frequencies over shorter distances, High Density mode can be enabled to dramatically increase the number of available open frequencies.

• Two receivers in a rugged 1RU metal chassis with internal power supply
• Individual gain controls, LED meters, and XLR outputs for each channel
• Up to 64 MHz tuning range (region dependent)
• Digital predictive switching diversity
• High Density mode optimizes ULX-D systems to simultaneously operate significantly more channels in applications up to 30 meters
• RF cascade ports allow distribution of RF signal to another unit
• Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
• Bodypack frequency diversity ensures uninterrupted audio for mission-critical applications
• AES 256-bit encryption-enabled for secure transmission
• Audio summing routes both audio channels to each XLR receiver output
• Dante digital networked audio over Ethernet
• Up to 60 dB independently adjustable gain for each channel
• Ethernet networking for streamlined frequency coordination and deployment across multiple receivers
• Wireless Workbench 6 (WWB6) software integration for advanced coordination, monitoring, and control
• AMX/Crestron control
• AXT600 Axient Spectrum Manager compatible
• Yamaha device ID allows simplified channel patching on CL consoles
• Intuitive front panel LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• XLR connectors with switchable mic/line output level
• Remoteable 1/2 wave antennas

SPECIFICATIONS

General

• Power Requirement: 100 to 240 V AC, 50-60 Hz, 0.26 A max
• Dimensions (H x W x D): 1.7 x 19 x 10.8 inches/44 x 482 x 274 mm
• Weight: 7.4 lbs (3.36 kg), without antennas
• Housing: Steel; Extruded Aluminum

Audio Output

• Gain Adjustment Range: −18 to +42 dB, in 1 dB steps (plus Mute setting)
• Configuration: XLR balanced (1=ground, 2=audio +, 3=audio -)
• Impedance: 100 Ω
• Full Scale Output
• LINE setting: +18 dBV
• MIC setting: −12 dBV
• Mic/Line Switch: 30 dB pad
• Phantom Power Protection: Yes

Cascade Output

• Connector Type: BNC
• Configuration: Unbalanced, passive
• Impedance: 50 Ω
• Insertion Loss: 0 dB

Networking

• Network Interface: Dual Port Ethernet 10/100 Mbps, 1Gbps, Dante Digital Audio
• Network Addressing Capability: DHCP or Manual IP address
• Maximum Cable Length: 100 m (328 feet)

RF Input

• Spurious Rejection: greater than 80 dB, typical
• Connector Type: BNC
• Impedance: 50 Ω
• Bias Voltage: 12 to 13 V DC, 150 mA (maximum, per antenna)
