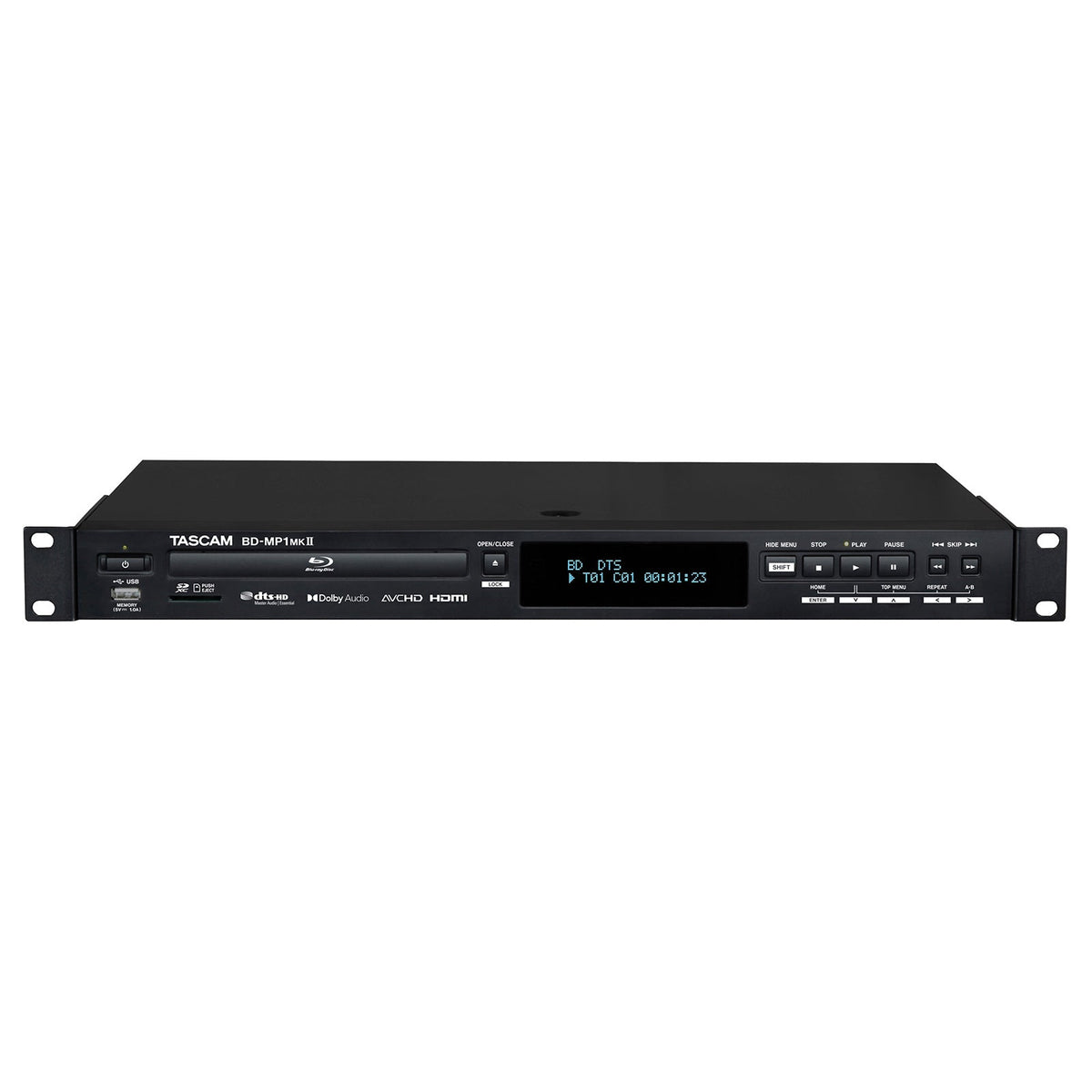

Tascam BD-MP1MKII Blu-Ray Player with SD and USB Playback

Versatile and Reliable – The Tascam BD-MP1MKII Blu-ray Player with SD and USB Playback

A compact, full-featured multi-format professional Blu-ray offering DVD/CD, SD card, and USB flash memory playback.

• Professional-grade Blu-ray player with SD and USB playback
• Supports Blu-ray, DVD, CD, USB flash memory, and SD card media
• Extensive support for video, image, and audio file formats
• Power-on Play and Repeat Mode for unattended playback
• Panel, IR, and tray lock functions for secure commercial operation
• Hide Menu function for discreet power-up displays
• Dual USB memory ports for front and back panel access
• HDMI output with Dolby Atmos audio support
• XLR balanced and RCA unbalanced stereo outputs
• Coaxial and digital audio outputs with Dolby Audio and DTS support
• 7.1 surround sound audio outputs for immersive playback

The Tascam BD-MP1MKII is a professional-grade Blu-ray player that expands the legacy of Tascam’s popular BD-01U and BD-MP1 Blu-ray players. The BD-MP1MKII is the perfect choice for a wide range of high-end residential and commercial installations, including public, educational and commercial facilities, theaters, amusement and entertainment businesses, to name a few.

The versatile BD-MP1MKII can automatically play back content in a wide range of file formats via any of the three front-panel media input slots, including Blu-ray/DVD/CD, USB flash memory, or SD card.

The BD-MP1MKII eliminates the need for discrete audio/video playback devices in an installation, offering single-source playback for a wide range of media and file formats, including Blu-ray (BD25, BD50, BD-ROM, BD-R, BD-RE), DVD (DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW), and CD (CD-DA, CD-R, CD-RW).

The BD-MP1MKII is the ideal single-source playback solution for commercial and residential installations, supporting an extensive range of file formats, including video (ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV), image (JPEG, GIF, PNG), and audio (WAV, MP3, WMA, AAC, FLAC, APE).

The unique Power-on Play feature allows the BD-MP1MKII to start playing desired content immediately on power up, without having to engage the Play feature first (disc media only). With Repeat Mode set to "on," content will automatically start, loop, and play continuously until power is turned off.

Panel lock, IR, and tray lock functions prevent accidental or user-error operation or alteration of pre-set controls in commercial installations, helping ensure consistent and reliable performance in any installation.

The monitor display can be set to show a black screen during start up rather than the manufacturer’s standard factory setup and source select menus, creating an elegant and non-distracting visual start-up environment each time the system is turned on.

Two USB memory ports, one front panel and one back panel, allow fixed or interchangeable access to USB memory data for playback versatility.

A standard rear panel HDMI output connection provides easy, reliable plug-and-play connection to any HDMI-compatible monitor display or television. In addition to HD video, Dolby Atmos audio can also be output.

Highlighting its appeal to commercial installation environments, the BD-MP1MKII offers professional-grade XLR balanced stereo analog outputs as well as RCA unbalanced stereo outputs for versatility in audio routing, connection, and setup.

The BD-MP1MKII provides support for professional-grade digital audio output formats including Dolby Audio, DTS, and others via back panel coaxial and digital audio output connections. Playback of 2-channel linear PCM is also supported.

Immersive and full, rich audio playback for any commercial installation is provided via 7.1 surround sound system audio outputs — front left and right (FL/FR), center (C), side left and right (SL/SR), surround back left and right (SBL/SBR), and subwoofer (SW).

SPECIFICATIONS

Supported Media

• Blu-ray: BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL)
• DVD: DVD-ROM, DVD-R (SL, DL), DVD-RW, DVD+R (SL, DL), DVD+RW
• CD: CD-DA, CD-R, CD-RW
• Disc Formats: BDMV, BDAV, DVD-Video, DVD-VR, AVCHD
• Supported Subtitle Formats: .sub, .ass, .idx + .sub

File Formats

• Video: ASF, MPG, AVI, 3GP, DAT, MKV, MOV, M2TS, OGM, TP, TS, MP4, WMV
• Audio: WAV, MP3, WMA, AAC, FLAC, APE
• Image: JPEG, GIF, PNG

Audio Performance

• Frequency Response: 20 Hz–20 kHz ±0.5 dB
• S/N Ratio: 96 dB or higher
• THD: 0.03% or less (1 kHz)
• Dynamic Range: 96 dB or higher
• Channel Separation: 89 dB or higher

HDMI Output

• Connector: HDMI 19-pin Type A
• Resolution: 480i/576i, 480p/576p, 720p, 1080i, 1080p
• Aspect Ratio: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
• Video Format: NTSC, PAL, Multi
• Signal System: RGB PC level, RGB Video level, YCbCr (4:4:4), YCbCr (4:2:2)

Digital Audio Output

• Connector: RCA
• Format: IEC60958-3 (S/PDIF)
• Output Impedance: 75 ohms or lower

Analog Audio Outputs

• Balanced: XLR × 2, +4 dBu (1.23 Vrms), max +20 dBu (7.75 Vrms), 200 ohms
• Unbalanced: RCA pair, -10 dBV (0.316 Vrms), max +6 dBV (2.0 Vrms), 210 ohms

7.1ch Audio Outputs

• Connector: RCA × 8 (FL/FR/SL/SR/SBL/SBR/C/SW)
• Output Level: -10 dBV (0.316 Vrms), max +6 dBV (2.0 Vrms)
• Output Impedance: 210 ohms or lower

Connectivity

• RS-232C: D-sub 9-pin
• Ethernet: RJ-45, 10BASE-T/100BASE-TX
• USB: 2 × USB Type-A, USB 2.0 compliant, up to 2 TB
• SD Slot: SD (512 MB–2 GB), SDHC (4 GB–32 GB), SDXC (64 GB–512 GB)

General

• Power Supply: AC 100–240 V, 50–60 Hz
• Power Consumption: 30 W
• Dimensions: 482.6 × 44 × 280.7 mm
• Weight: 2.64 kg
• Operating Temperature: 5 to 35°C (41°F to 95°F)
