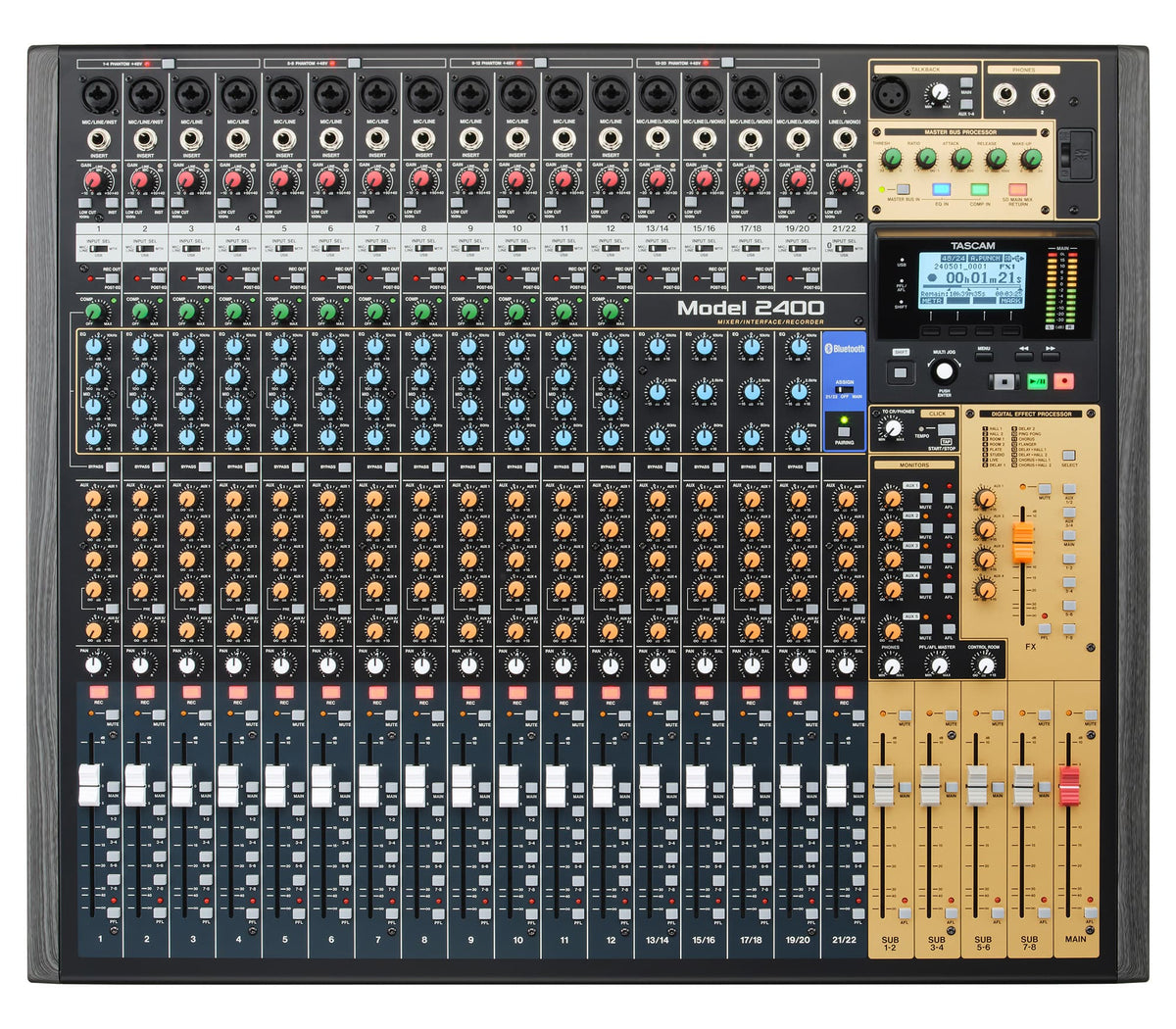

Tascam Model 2400 24-Channel Analog Recording Console

Redefine Studio and Stage Workflows – The Tascam Model 2400 Recording Console and Live Mixer

22 channels, 24 tracks, one solution — from performance to recording, the Model 2400 redefines what you can do with a studio recording and live mixing console.

• 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
• 24 in / 22 out USB audio interface
• 22 analog input channel modules with 16 XLR mic preamps, utilizing Tascam ultra HDDA mic preamp technologies and a one knob compressor (Ch 1–12)
• Equipped with input inserts (send/return) on channels 1–12
• 5 aux (4 aux plus internal FX) sends, 4 stereo sub groups and main L/R
• MIDI in/out allows USB MIDI interface and MIDI sync, 1/4-inch audio click output with tempo control
• DAW transport control and REC READY control via HUI/MCU
• Dedicated settings panel application with meter bridge

The Model 2400’s versatility doesn’t compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you’ll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn’t be simpler.

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert points on channels 1–12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard master bus processing, a send/return loop on the main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

With 5 aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you’re a DAW-less producer.

SPECIFICATIONS

General

• Recording Tracks: 24 (22 input channels + stereo mix)
• Input Channels: 22
• Mic Preamps: 16 XLR with ultra HDDA technology
• Channel Inserts: Channels 1–12 and Main bus
• Compressor: One knob (Channels 1–12)
• EQ: 3-band EQ on Ch 1–12 with sweepable mid
• Faders: 100 mm (Ch 1–22, Sub 1–4, Main L/R)
• Outputs: Main L/R (XLR balanced), Sub 1–8 and Aux 1–5 (TRS), Control Room (TRS)
• Phones Outputs: 2
• Talkback Input: XLR
• Bluetooth Input: Supports AAC and SBC codecs
• Built-in Effects: 16 studio-quality FX (reverb, delay, chorus)
• SD Card Format: SDXC
• USB Interface: 24 in / 22 out
• MIDI: In/out
• DAW Control: HUI/MCU support
