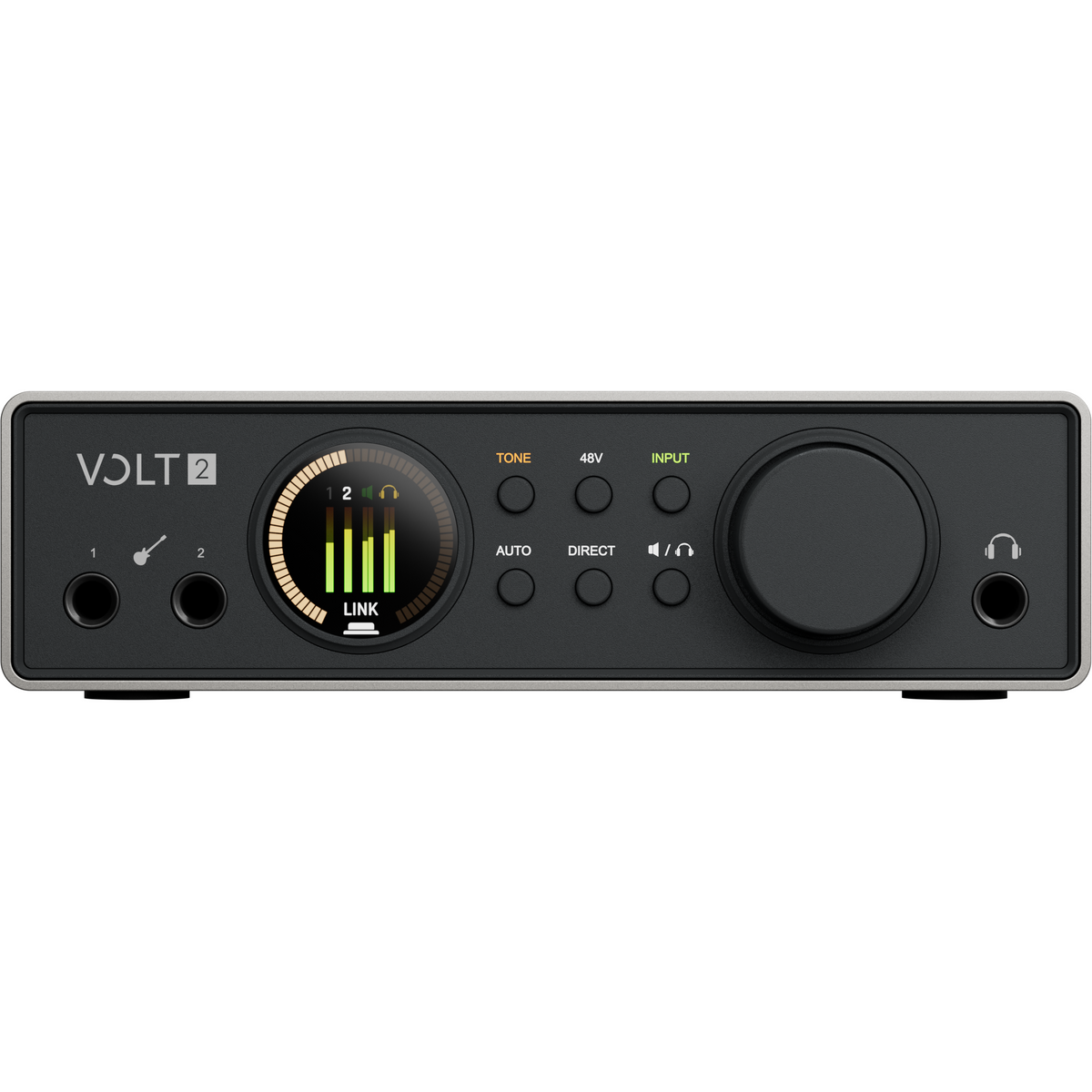

Universal Audio Volt 2 Gen 2 USB 2-in / 4-out Audio Interface

Pro Audio Sound - The Universal Audio Volt 2 Gen 2 USB 2-in / 4-out Audio Interface

Volt 2 is a next-generation mobile USB audio interface with two onboard Tone Shaping Preamps and a Smart Display, giving music creators the sound of a pro studio with easy, hands-on control. Built by the same team behind legendary Apollo interfaces, Volt 2 makes recording effortless. Get up and running on Mac, Windows, iPad, or iPhone in minutes. Set vocal, guitar, and stereo instrument levels perfectly with Auto-Gain. And when it’s time to mix, you get an award-winning suite of UAD plug-ins and the LUNA Digital Audio Workstation.

• 2-in / 4-out USB audio interface with professional 32-bit / 192 kHz audio conversion
• Two Tone Shaping Preamps with 60 dB gain and three character modes — Warmth, Focus, and Shine — for the sound of classic analog mic preamps
• Two mic / line inputs with two front-panel Hi-Z instrument inputs for recording your vocals and instruments together, or in stereo
• Full-color Smart Display for bright, at-a-glance visual feedback of inputs, levels, and settings
• Auto-Gain and Clip Protection for perfect recording levels, every time
• Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
• Built-in loopback for podcasting, streaming and content creation
• Independent 48V phantom power per channel for condenser microphones
• USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone
• Stylish, rugged construction built to withstand years of use

Studio Sound at the Push of a Button

Home recordings and phone demos can sound thin and lifeless. Volt gives your recordings incredible tone right from the start. With three mic preamp modes — Warmth, Focus, and Shine — you can quickly add Tube, Solid State, and British Class-A tone to everything you record.

Hear Every Detail with Best-in-Class 32-Bit Converters

When you capture that perfect take, Volt’s 32-bit / 192 kHz converters preserve every detail, exactly as it happened. And with loud, clear speaker and headphone outputs, you'll get the perfect monitoring levels, from your first take to your final mix.

Record Vocals and Instruments Like a Pro

Volt 2 gives you two studio-grade Mic / Line and Hi-Z Instrument inputs, letting you record vocals, instruments, or stereo sources at the same time. Its clean 48V phantom-powered mic inputs let you connect your favorite studio condenser mics for high-quality recording.

See the Big Picture with Smart Display

Volt 2’s full-color Smart Display shows your inputs, levels, and settings in detail. So you spend less time setting up and more time creating.

Get the Perfect Levels with Auto-Gain

Nothing’s worse than a great take wrecked by digital distortion. Volt's Auto-Gain sets your recording levels in seconds, and Clip Protection catches unexpected peaks. So you can focus on the performance instead of the meters.

Turn Anywhere You Go into a Studio

Volt 2 is bus-powered. That means you don’t need a power outlet or external power supply to make music. Or even a studio space. Just plug Volt into your computer, tablet, or phone, pull up a session and get to work.

Start Making Music in Minutes

When you’re inspired, every second counts. Thankfully, Volt is ready, willing, and USB class-compliant on Mac, Windows, iPad, and iPhone. No downloads or drivers. Works with any DAW. So you can be up and recording in minutes.

Shape Your Songs with UAD Plug-Ins and LUNA

Every Volt includes over 15 UAD plug-ins and instruments — the same software used to create and mix countless hit records for decades. Plus you get LUNA, UA’s award-winning DAW with authentic “big studio” sound and smart tools designed to make recording easy.

Ideal for Podcasts and Livestreams

Volt Gen 2’s Loopback feature allows you to blend live sources with computer audio. So you can mix podcasts and livestreams in realtime. Or just level up your video calls. It's the same way pro broadcasters work, built into every Volt.

SPECIFICATIONS

I/O

• Simultaneous I/O: 2-in / 4-out
• Microphone Preamps: Two, 60 dB available gain with Tone Shaping
• Monitor Outputs: One stereo
• Headphone Output: One stereo (one cue mix)
• USB: One USB 2.0 Host port; one USB External Power input port — requires 5VDC @ 1A minimum
• USB Connectors: USB Type-C
• Digital / Optical: None
• MIDI: None

A/D – D/A Conversion

• Supported Sample Rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
• Bit Depth: 32

Power

• USB Bus-Powered: Yes
• Power Consumption (@ 5VDC): 3.4W typical, 4.9W maximum
• On / Off Switch: None

Analog I/O - Instrument Inputs 1-2

• Frequency Response: 20 Hz to 20 kHz ±0.02 dB
• Dynamic Range (A-Weighted): 116 dB
• THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
• Maximum Input Level: 13 dBu
• Input Impedance: 1 Megohms
• Available Gain (Digitally-Controlled): 60 dB
• Connector Type: ¼” TS unbalanced

Microphone Inputs 1-2

• Frequency Response: 20 Hz to 20 kHz ±0.08 dB
• Dynamic Range (A-Weighted): 119 dB
• THD + Noise (1 kHz @ -1 dBFS): -110 dB (0.0003%)
• Maximum Input Level: 14 dBu
• Input Impedance: 2 Kilohms
• Available Gain (Digitally-Controlled): 60 dB
• Phantom Power: +48V (switchable per channel)
• Connector Type: XLR Combo Jack, pin 2 positive

Line Inputs 1-2

• Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Dynamic Range (A-Weighted): 119 dB
• THD + Noise (1 kHz @ -1 dBFS): -108 dB (0.0004%)
• Maximum Input Level: 22 dBu
• Input Impedance: 10 Kilohms
• Available Gain (Digitally-Controlled): 60 dB
• Connector Type: ¼” Combo Jack TRS balanced or TS unbalanced

Monitor Outputs

• Frequency Response: 20 Hz to 20 kHz ±0.05 dB
• Dynamic Range (A-Weighted): 126 dB
• THD + Noise (1 kHz @ -1 dBFS): -112 dB (0.0003%)
• Maximum Output Level: 20.2 dBu
• Output Impedance: 200 Ohms
• Connector Type: ¼” TRS balanced (DC coupled)

Included Free UAD Software

• LUNA Digital Audio Workstation
• Topline Vocal Tune
• UA 610 Tube Preamp & EQ Collection
• Century Tube Channel Strip
• Teletronix LA-2A Tube Compressor
• UA 1176 Classic FET Compressor
• Pure Plate Reverb
• Galaxy Tape Echo
• Oxide Tape Recorder
• Vibe Analog Machines
• PolyMAX Synth
• Anthem Analog Synth
• UAD Lion ’68 Super Lead Amp
• UAD Showtime ’64 Tube Amp
• Melodyne Essential by Celemony
• Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance, including Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
• Virtual Drummer DEEP by UJAM
• Virtual Bassist DANDY by UJAM
• Splice INSTRUMENT
• Prisma - Producer Lab by UVI
• FL Studio Producer Edition (3 months free)
• Access to exclusive Puremix audio education content

System Requirements - macOS & Windows

• Available USB 2.0 (or higher) port
• USB cable (included)
• Intel, AMD, or Apple silicon processor
• Windows 10 64-bit edition or newer
• macOS 12 Monterey or newer
• Internet connection for software downloads

System Requirements - iPad & iPhone

• iPadOS / iOS 16 or newer

DAW Compatibility

• All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more
