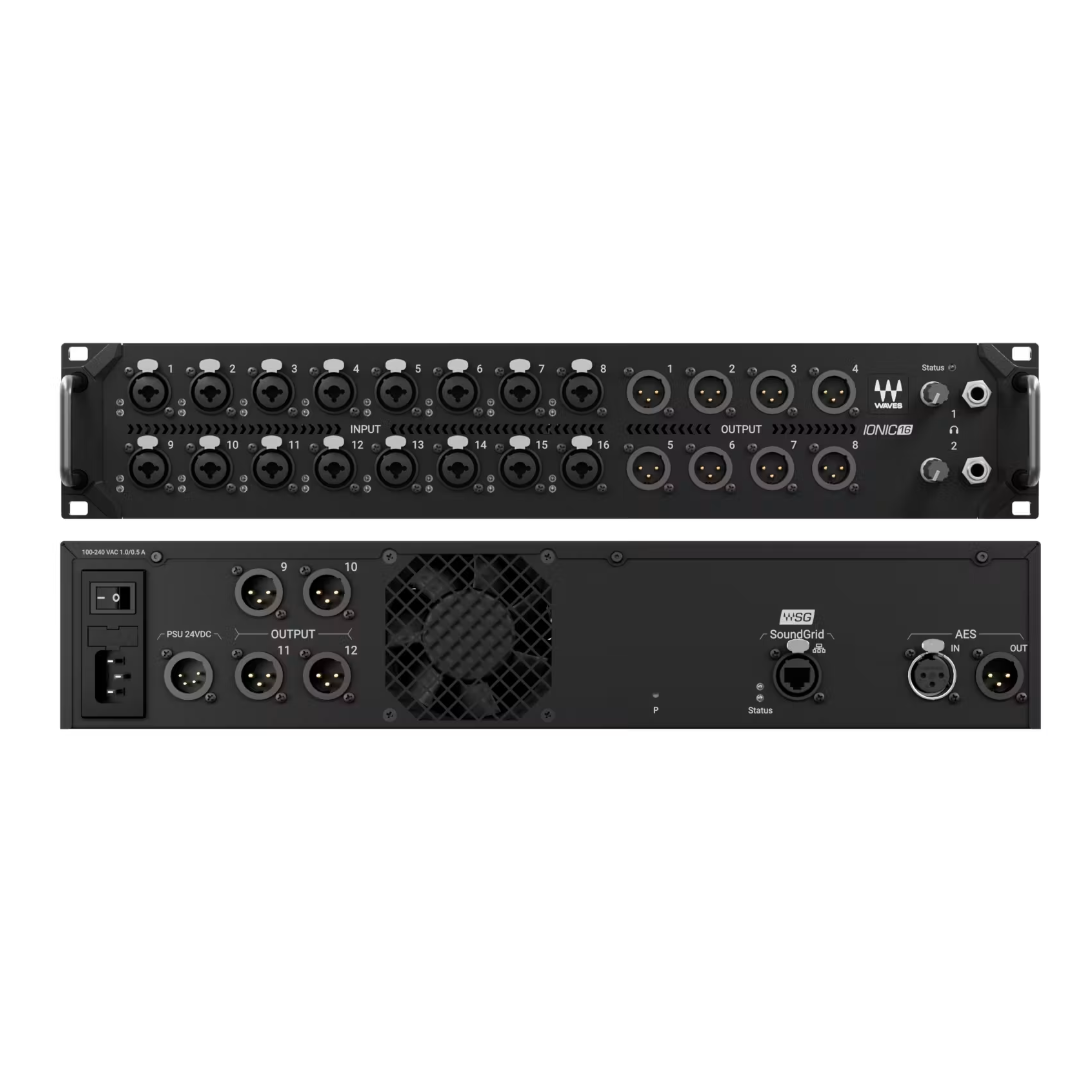

Waves Ionic 16 Digital Stagebox

Step Up to Superior Stagebox Sound with the Waves IONIC 16 SoundGrid Stagebox

The Waves IONIC 16 is a 16-input / 12-output SoundGrid stagebox designed to deliver punch, clarity, and flexible control for live sound applications. Built to integrate seamlessly with the Waves eMotion LV1 live mixer, IONIC 16 features Waves Signature Preamps, discrete analog circuitry, optional harmonic enhancement, and a rugged 2U rackmount chassis for professional stage and touring use.

• 16-input / 12-output SoundGrid stagebox for live sound systems
• Seamless integration with the Waves eMotion LV1 live mixer
• 16 mic/line inputs with Waves Signature Preamps
• 12 clear line outputs selectable between 18 dBu and 24 dBu
• Stereo AES input/output for digital audio connectivity
• Two independent headphone outputs
• Optional analog-modeled harmonic enhancement per input
• Sample rates include 44.1, 48, 88.2, and 96 kHz
• Analog input impedance selector offers classic 2k ohms or modern 7k ohms settings
• Road-ready 2U rackmount chassis
• Optional external power supply available separately

Waves Signature Preamps

At the heart of IONIC 16 are Waves Signature Preamps, designed with fully discrete analog circuits for high headroom, fast transient response, and an extremely low noise floor. These preamps are built to handle a wide range of live sound sources while maintaining a clean, punchy signal.

True Studio Sound on Stage

IONIC 16 gives users the option to add rich harmonic enhancement on each input using analog-modeled HMX harmonic enhancement. The enhancer can be turned on or off per channel, allowing engineers to choose between a neutral preamp tone or added analog-style warmth depending on the source.

Crystal Clear Outputs with Extra Headroom

With 12 powerful line outputs and two independent headphone outputs, IONIC 16 is designed for stage wedges, in-ear monitor systems, PA feeds, and other live sound routing needs. Selectable 18 dBu or 24 dBu output levels provide flexibility for different system requirements.

Seamless eMotion LV1 Integration

IONIC 16 connects directly into Waves eMotion LV1 systems for efficient setup and control. The IONIC control panel is available from the LV1 device rack, allowing engineers to adjust preamp and output parameters directly from the mixer.

Flexible Mic Input Response

The analog input impedance selector allows users to choose between classic 2k ohms and modern 7k ohms impedance settings. This gives engineers additional control over microphone interaction and source character.

SPECIFICATIONS

General

• Product Type: SoundGrid stagebox
• Model: IONIC 16
• Rack Size: 2U
• Input Count: 16
• Output Count: 12
• Preamp Type: Waves Signature Preamps
• Live Mixer Integration: Waves eMotion LV1

Inputs

• Mic/Line Inputs: 16
• Preamp Circuit Design: Fully discrete analog circuits
• Harmonic Enhancement: Analog-modeled HMX harmonic enhancement, selectable per input
• Input Impedance Selector: Classic 2k ohms / modern 7k ohms

Outputs

• Line Outputs: 12
• Output Level Selection: 18 dBu or 24 dBu
• Headphone Outputs: 2 independent headphone outputs

Digital Audio

• Digital Format: SoundGrid
• AES Input/Output: Stereo AES input/output
• Supported Sample Rates: 44.1, 48, 88.2, and 96 kHz

Construction

• Chassis: Road-ready rackmount chassis
• Rack Height: 2U

Power

• External Power Supply: Optional, available separately
