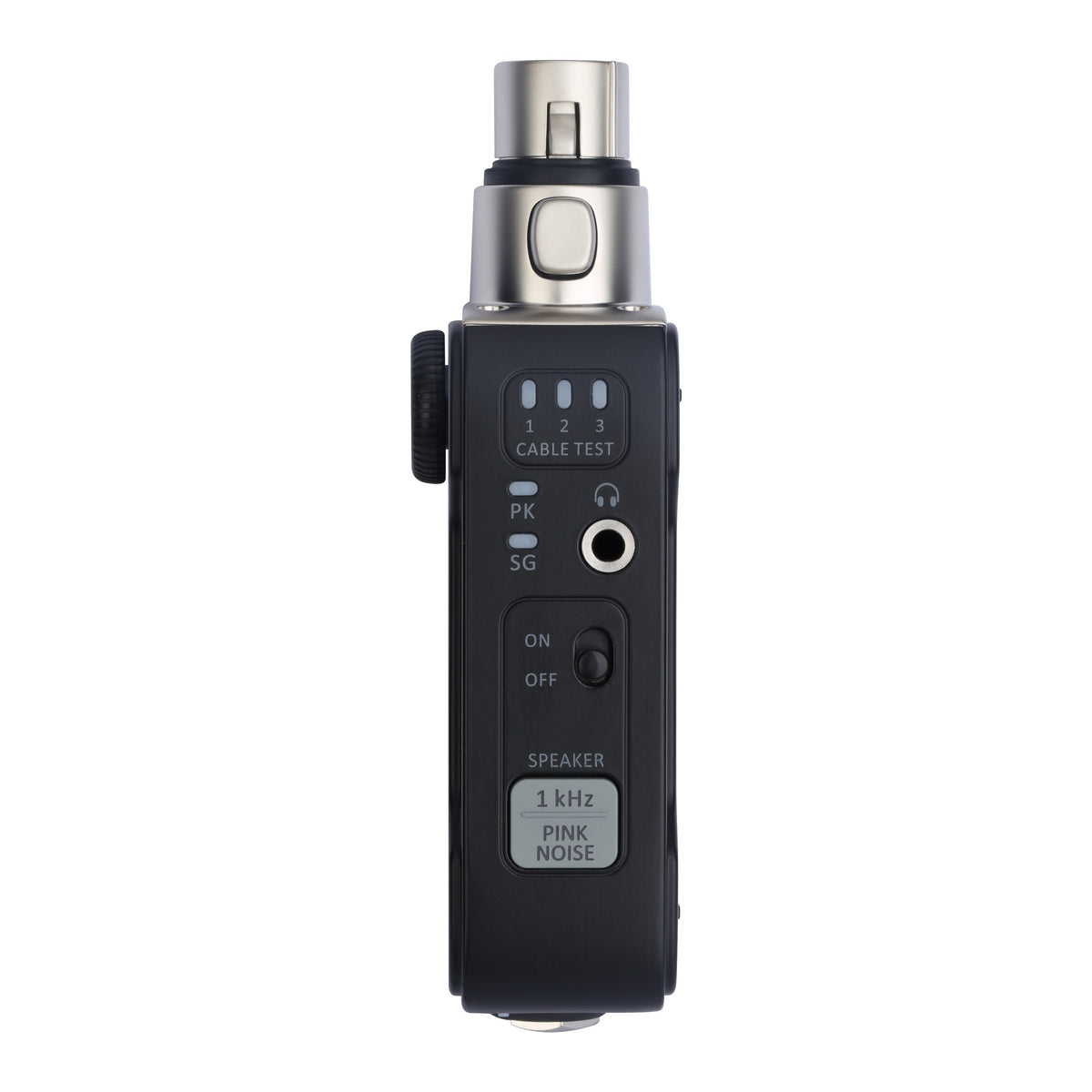

Xvive AT3 Audio Tester Ultra

Test with Flexibility Using the Xvive AT-3 Audio Tester Ultra

The Xvive AT-3 is a professional, split-design audio testing tool with independent male and female XLR units for maximum flexibility. It features signal generation, input/output monitoring, phantom power detection, and upgraded long-distance cable testing for XLR/DMX. With increased battery capacity (up to 700mAh), it's ideal for testing speakers, pedals, cables, DI boxes, IEMs, mixers, and more—perfect for audio engineers and live sound professionals!

• Includes two units: AT-3M (output) and AT-3F (input)
• Signal generator outputs 1 kHz sine wave or pink noise
• Three output level options: -10 dB, -20 dB, and -40 dB
• Split-unit XLR cable testing for long-distance diagnosis
• Phantom power detection with individual pin check
• XLR input metering with SG and PK LED indicators
• Headphone and speaker monitoring via AT-3F
• Auto-switching between internal speaker and headphone output
• USB-C rechargeable with LED charge indicator
• Low battery warning via flashing signal LEDs

In audio input mode, signals from the XLR or 1/4-inch input are sent to the built-in speaker by default. If a pair of headphones is connected to the 1/8-inch jack, the speaker is automatically muted. The AT-3F handles monitoring, while the AT-3M sends signal. Independent operation enables full signal path testing across gear and environments.

SPECIFICATIONS

Output Level Options

• -10 dB, -20 dB, -40 dB

Signal Types

• 1 kHz sine wave
• Pink noise

Inputs

• XLR female
• 1/4-inch TS

Outputs

• XLR male
• 1/4-inch TS
• 1/8-inch headphone/speaker output (AT-3F only)

Impedance

• XLR output: 350 ohms
• XLR input: 3 kOhms
• 1/4-inch input/output: 600 ohms

Phantom Power Detection

• Flashing LED: 24–44 V
• Solid LED: 44–52 V

Cable Tester DC Voltage

• 3.3 V
