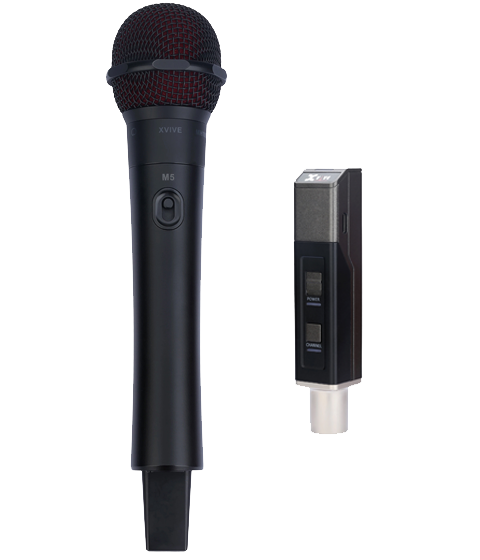

Xvive M5 Digital Wireless Handheld Microphone System

Get Flexible Wireless Performance with the Xvive M5 Wireless Microphone System

M5 is a compact and easy-to-use wireless microphone system designed for stage performance, hosting, teaching, livestreaming and portable public address applications. It features one auto-sync channel and six fixed channels (Channels 1–6) for flexible use in single or multi-system setups.

• The M5 System includes a high-quality dynamic Microphone/Transmitter and a wireless Receiver
• Stable wireless broadcast on the 5.8 GHz band with high-fidelity 24-bit/48 kHz audio and very low latency
• 7 wireless channels to choose from including default Auto mode and six fixed-frequency channels
• The mic head can be swapped out with mic heads from other brands including Shure, Electro-Voice, Heil Sound, Telefunken, Lectrosonics, Lewitt and Austrian Audio
• Microphone signal can be sent to multiple M5 Receivers
• Up to six M5 Systems can be used simultaneously in one location on fixed-frequency channels, and/or up to five M5 systems on Auto Mode

Channel Options

M5 offers seven channel options: Channel 0 (Auto Mode) and six fixed-frequency channels (1-6). The set will connect in Auto Mode by default—but users can use any fixed-frequency channel by setting the Transmitter and Receiver to the same channel (1-6). Channel 0 automatically scans the local RF environment and selects available frequencies to help maintain a stable wireless connection. For typical single-set use, Channel 0 is recommended.

Connecting the Receiver

After wirelessly linking the units, connect the M5 Receiver to an audio device. Plug the Receiver directly into an XLR mic input on a device (mixer, powered speaker, audio interface). This is the simplest and most common setup.

One Microphone, Multiple Receivers

To send a signal from one Microphone/Transmitter to multiple Receivers, select one of the fixed-frequency channels (1–6) and set the Transmitter and all Receivers to the same channel. Auto Mode (Channel 0) cannot be used with more than one Receiver connected to the same Transmitter.

Multiple Systems, One Area

Using fixed-frequency channels (1–6), users can use up to six M5 systems simultaneously in the same area, with one system per fixed channel. And/or, users can use up to five factory pre-paired systems using Auto Mode (Channel 0)—each system operating as a one-to-one paired Transmitter and Receiver. The limits above do not restrict the ability of a single Transmitter to connect to multiple Receivers using fixed-frequency channels.

XLR-to-1/4-Inch Options

The M5 Receiver connects to a female XLR input only, ready to connect directly into an XLR mic input on a mixer or interface. However, the included XLR-to-6.35 mm (1/4-inch) adapter also allows connection to 1/4-inch inputs on powered speakers or amplifiers.

Capsule Compatibility

The M5 handheld Transmitter is compatible with microphone heads from Shure, Electro-Voice, Heil Sound, Telefunken, Lectrosonics, Lewitt and Austrian Audio. Compatibility refers to mechanical and electrical interface matching only.

SPECIFICATIONS

General

• Wireless Type: 5.8 GHz ISM worldwide open band
• Bit Depth/Sample Rate: 24-bit / 48 kHz
• Switchable Channels: 7 (Auto Mode + 6 fixed-frequency channels)
• Frequency Response: 20 Hz – 20 kHz
• Dynamic Range: 110 dB
• Model Number: M5

Compatible Microphone Heads

• Shure: Beta58A, Beta87A, Beta87C, KSM8, KSM9, KSM9HS, PG58, SM58, SM86, SM87A
• Electro-Voice: RC2-767, RC2-967, RC2-PL80a, RC2-410, RC2-510, RE420-RC3, RE520-RC3
• Heil Sound: RC22, RC35
• Telefunken: M80WH, M81WH
• Lectrosonics: HHC, HHVMC
• Lewitt: W9
• Austrian Audio: OD505 WL1, OC707 WL1

Included Items

• Carry Case: durable carry case
• Microphone/Transmitter: 1
• Receiver: 1
• XLR-to-1/4-Inch Adapter: 1
• USB Charging Cable: 1
• User Manual: 1
