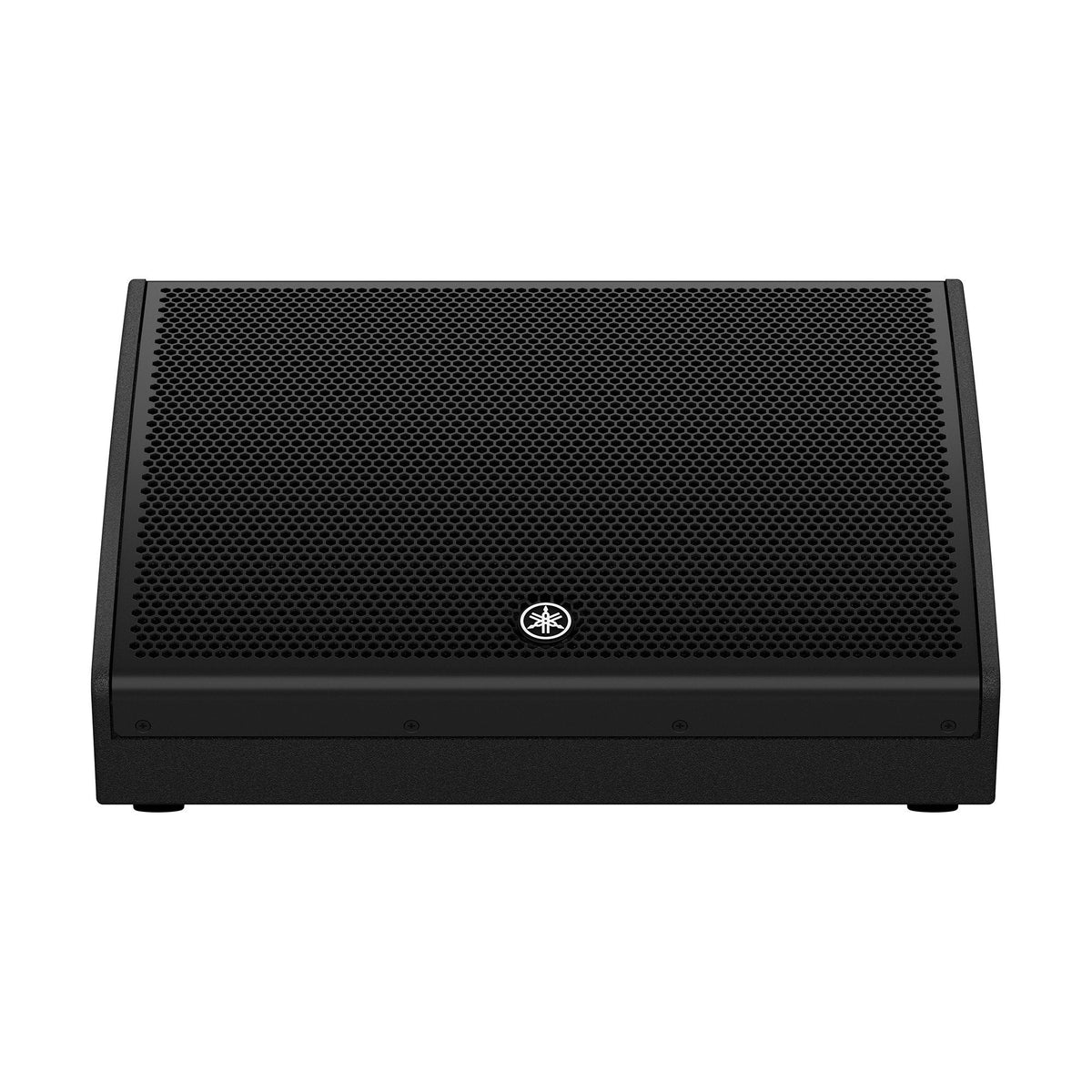

Yamaha CHR15M 1,000-Watt 15-Inch Passive Monitor Speaker

Monitor with Clarity – The Yamaha CHR15M 1,000-Watt 15-Inch Passive Monitor Speaker

The CHR15M is a 2-way loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining carefully selected and customized transducers with the same plywood construction found on Yamaha’s high-end CZR Series, the CHR15M offers best-in-class sound quality and durability.

• The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
• Featuring a plywood cabinet that delivers a clear sound with minimal vibration
• Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
• A pole socket for use on a stand
• Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance

SPECIFICATIONS

General

• Speaker Type: 2-way speaker, bass-reflex
• Nominal Impedance: 8 ohms
• Crossover: 2.0 kHz

Performance

• Frequency Range: 58 Hz - 20 kHz
• Coverage Area: H65° x V75°
• Sensitivity: 95 dB SPL
• Peak SPL: 125 dB SPL

Components

• LF Driver: 15-inch cone
• LF Voice Coil: 3 inches
• LF Magnet: Ferrite
• HF Diaphragm: 1.75 inches
• HF Driver Type: 1-inch throat compression driver coaxial
• HF Magnet: Ferrite

Power Rating

• Noise: 275 W
• PGM: 550 W
• Peak: 1,100 W

Connections

• I/O Connectors: SpeakON NL4MP x 3, parallel

Construction

• Cabinet Material: Plywood
• Finish: Durable polyurea painting, black
• Handle: Side x 1

Mounting

• Pole Socket: 35 mm x 1, side
• Floor Monitor Angle: 57°

Dimensions

• Width: 642 mm / 25.3 inches
• Height: 369 mm / 14.5 inches with rubber feet
• Depth: 505 mm / 19.9 inches

Weight

• Net Weight: 21.3 kg / 47.0 lb
