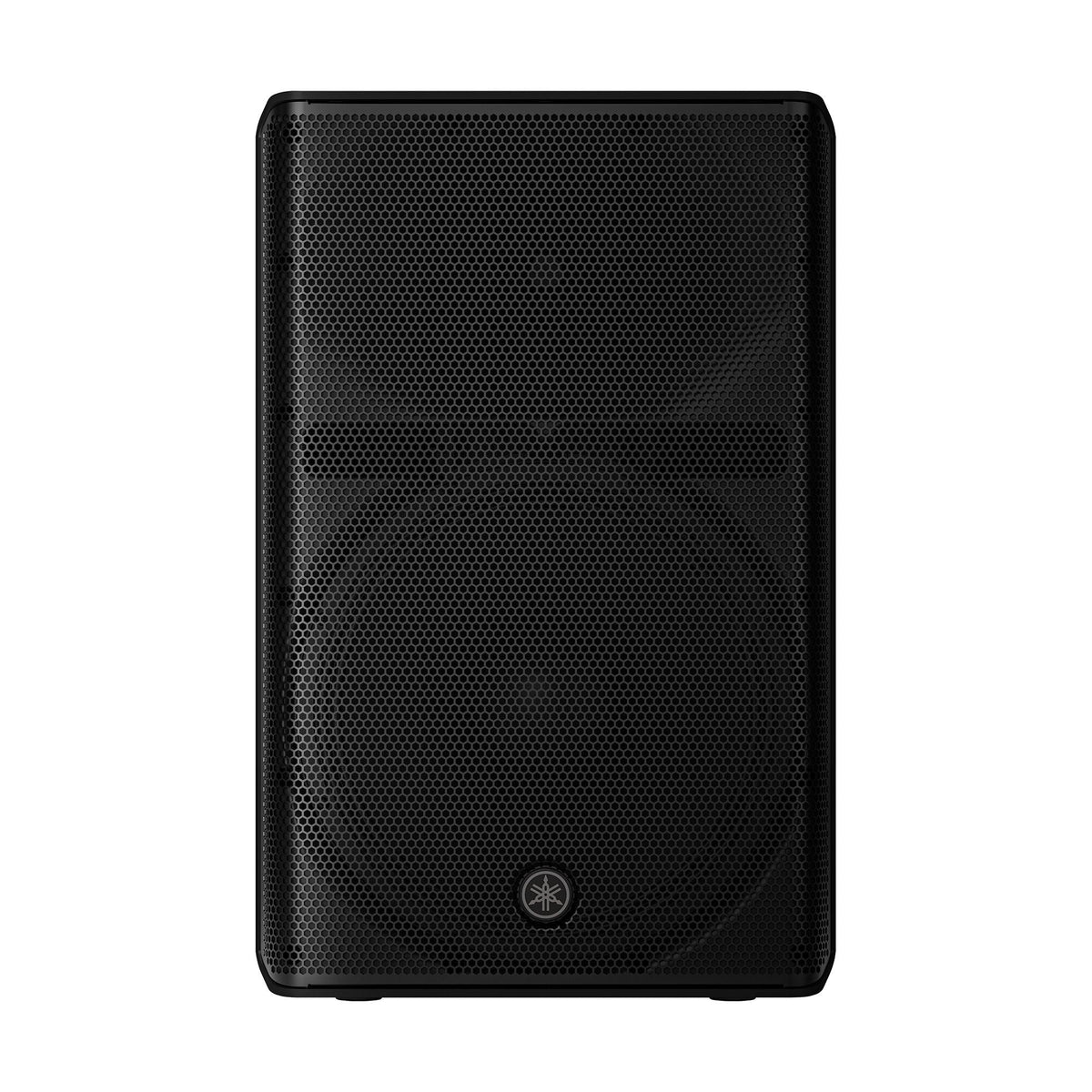

Yamaha DXR15MKIII 15-Inch 1100-Watt Powered Speaker

Powerful Low-End Impact - The Yamaha DXR15 mk3 15-Inch Powered Loudspeaker in Black

The DXR15 mk3 is a 2-way, bi-amped, powered loudspeaker that delivers the lowest frequency range in the new lineup with exceptional clarity, precision, and a powerful 134 dB SPL. Combining deep bottom end and substantial power, it is ideal as a main front-of-house speaker for DJ events or live performances that demand a strong low frequency presence. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility with powerful features that enhance the overall user experience.

• 15-inch LF + 1.75-inch HF proprietary high-durability speaker units
• The large-diameter horn secures directivity control across a wide frequency range
• Optimized port positioning reduces standing wave effects
• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
• Newly developed 2000W Class-D amplifier
• FIR-X tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
• Drive Motion Calibration corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
• DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
• Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
• Compatible with audio streaming via Bluetooth
• Intelligent feedback suppressor automatically eliminates unpleasant feedback
• Optional UB-DXR15A U-bracket allows both for vertical or horizontal use
• Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
• Rigging points for use with eye bolts
• Dual-angle pole sockets offer both 0° or a -7° down tilt

SPECIFICATIONS

General Specifications

• Speaker Type: 2-way, bi-amped powered speaker, bass-reflex
• Frequency Range (-10dB): 46 Hz - 20 kHz
• Coverage Area: H90° x V60°
• Crossover: 1.8 kHz: FIR-X tuning (linear phase FIR filter)
• Maximum Output Level: 134 dB SPL, measured peak, IEC noise @ 1 m

Components

• LF: Diameter: 15-inch cone, Voice Coil: 3 inches
• HF: Diaphragm: 1.75 inches, Type: 1-inch throat compression driver

Amplifier

• Amplifier Class: Class-D
• Peak Power Rating: 2000 W (LF: 1700 W, HF: 300 W)
• RMS Power Rating: 1000 W (LF: 850 W, HF: 150 W)
• Cooling: Fan cooling, 5 speeds

Power

• Power Consumption: 120 W (1/8 power), 35 W (Idle)
• Power Requirements: 100 V - 240 V, 50/60 Hz

Processing

• A/D D/A Converters: 32-bit/96 kHz sampling
• Processors: HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF

I/O Connectors

• Analog Input: INPUT1: Combo x 1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic)
• Analog Output: OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT
• Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Others: D-Remote (iOS/Android app)

Construction and Mounting

• Cabinet Material: Plastic (PP)
• Finish: Black
• Handle: Side x 2
• Pole Socket: Φ35 mm x 2 (Bottom, 0° or -7°)
• Rigging: Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXR15A)
• Floor Monitor Angle: 52°

Dimensions and Weight

• Width: 447 mm (17.6 inches)
• Height: 699 mm (27.5 inches)
• Depth: 380 mm (15.0 inches)
• Net Weight: 21.0 kg (46.3 lbs)

Options

• U-Bracket: UB-DXR15A
• Cover: SPCVR-DXR153
