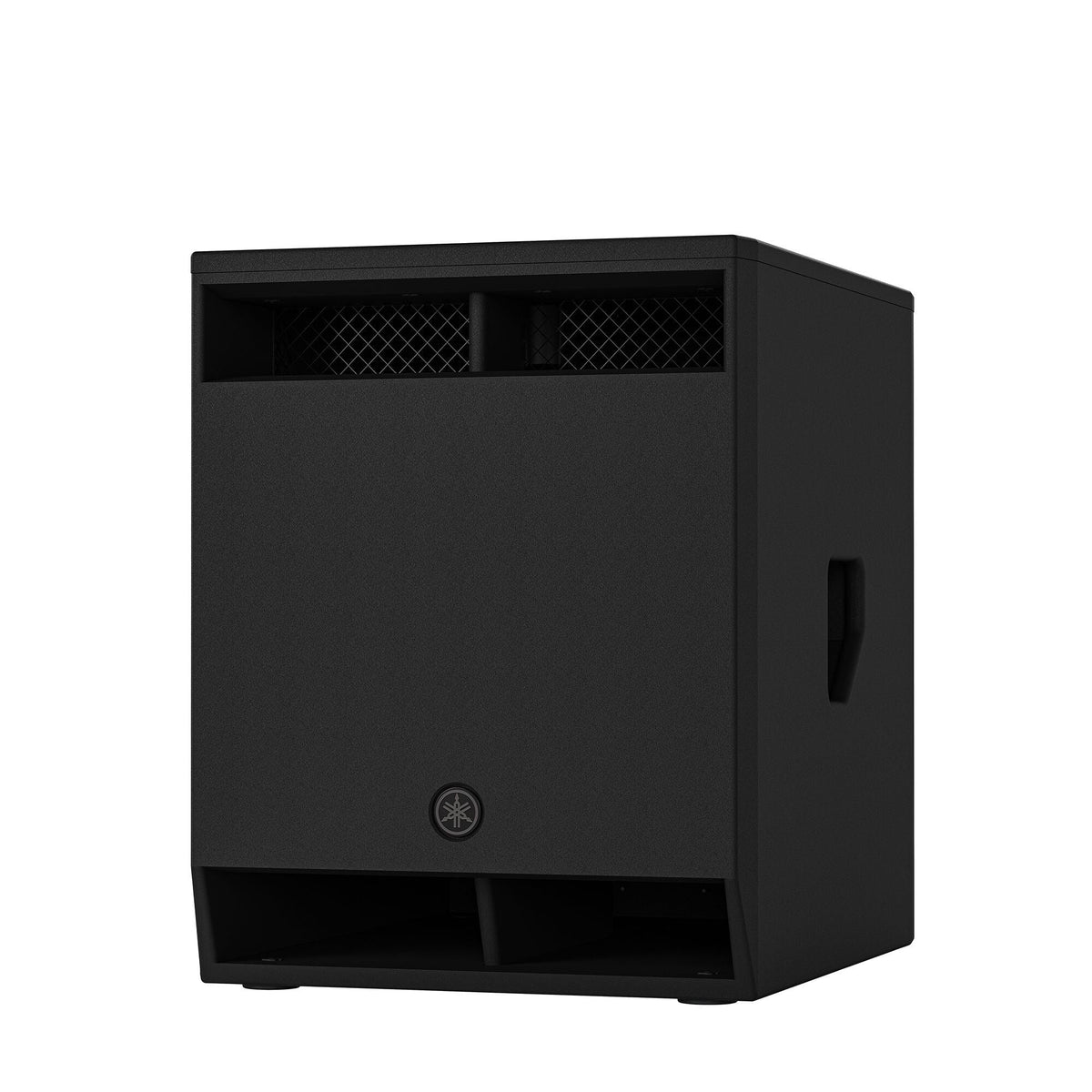

Yamaha DXS15MKIII 15-Inch 1500-Watt Powered Subwoofer

Deep, Powerful Bass - The Yamaha DXS15 mk3 Powered Subwoofer in Black

The DXS15 mk3 is the mid-size version of Yamaha’s latest generation of DXS series powered subwoofers. The new model delivers deep, clear, and remarkably powerful, ultra-low bass thanks to Yamaha’s proprietary high-durability transducers, redesigned high-efficiency power amplifiers, and an ideal bandpass structure that eliminates unwanted cabinet noise. When paired with Yamaha’s perfectly matched DXR mk3 series loudspeakers in particular, the DXS15 mk3 enables users to build a seamlessly integrated sound system with unparalleled impact.

• 15-inch Cone, 3-inch Voice coil proprietary high-durability speaker unit
• Newly developed 2500 W Class-D amplifier
• High-output woofer with an ideal bandpass cabinet design for superior bass response, delivering a maximum 133 dB SPL
• Built-in D-XSUB processing allows users to extend the frequency response even lower, up to 35 Hz
• Extremely flexible X-OVER settings with DSP
• Cardioid mode for bass management onstage
• Plywood cabinet is durable and acoustically optimized for maximum sound quality
• M20 and 35 mm dual pole sockets
• Optional Speaker Wheels (SPW-1) and Speaker Cover (SPCVR-DXS153)

SPECIFICATIONS

General Specifications

• Speaker Type: Powered subwoofer, band-pass
• Frequency Range (-10dB): 35 Hz - 140 Hz
• Maximum Output Level: 133 dB SPL, measured peak, IEC noise @ 1 m

Components

• LF: Diameter: 15-inch cone, Voice Coil: 3 inches

Amplifier

• Amplifier Class: Class-D
• Peak Power Rating: 2500 W
• RMS Power Rating: 1250 W
• Cooling: Fan cooling, 5 speeds

Power

• Power Consumption: 130 W (1/8 power), 40 W (Idle)
• Power Requirements: 100 V - 240 V, 50/60 Hz

Processing

• A/D D/A Converters: 32-bit/96 kHz sampling
• Processors: HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: NORMAL, XTENDED LF

I/O Connectors

• Analog Input: INPUT1 and 2: Combo x 1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24 dBu
• Analog Output: OUTPUT1 and 2: XLR3-32 THRU or DSP OUT
• Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Others: D-Remote (iOS/Android app)

Construction and Mounting

• Cabinet Material: Plywood
• Finish: Durable Polyurea Painting, Black
• Handle: Side x 2
• Pole Socket: 35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)

Dimensions and Weight

• Width: 480 mm (18.9 inches)
• Height: 611 mm (24.1 inches)
• Depth: 614 mm (24.2 inches)
• Net Weight: 37.0 kg (81.6 lbs)

Options

• Cover: SPCVR-DXS153
• Caster: SPW-1
