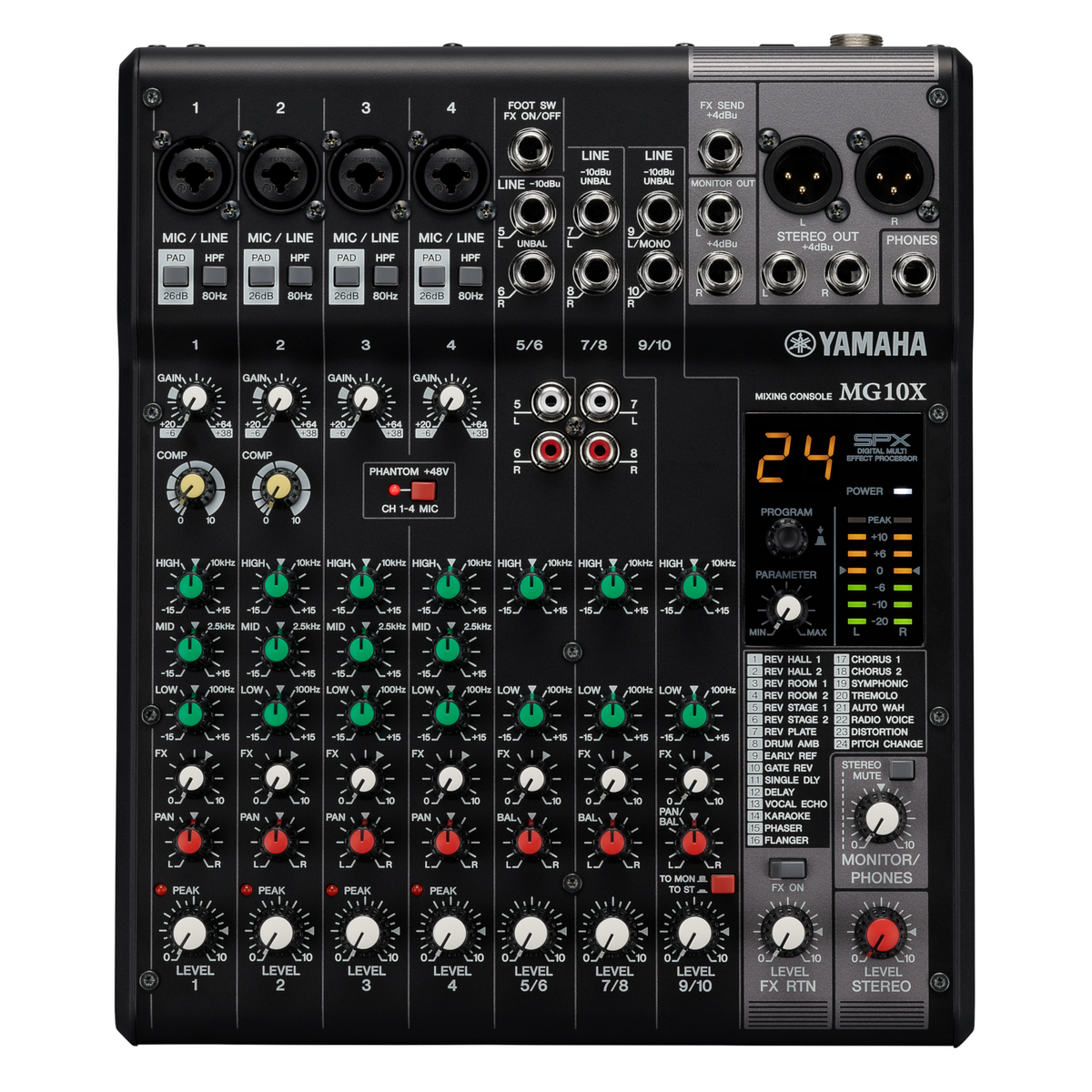

Yamaha MG10X CV 10-Input Stereo Mixer

Impressive and Intuitive - The Yamaha MG10X CV 10-Input Stereo Mixer

Housed in a rugged steel chassis, the MG10X CV can accommodate up to 10 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes an Aux bus for the built-in SPX effect with 24 presets and 2 channels of single knob compression. The MG10X can accept XLR, 1/4-inch Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG10X offers rotary controls instead of faders, reducing the footprint of discrete placement onstage or anywhere space is a premium. A footswitch input allows hands-free effect muting.

• Rugged, Powder-coated steel chassis for superior durability
• Discrete Class-A microphone preamps
• Switchable +48V Phantom power
• Color-coded controls offer easy operation

SPECIFICATIONS

General

• Frequency Response Input to STEREO OUT: +0.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Total Harmonic Distortion (THD+N) Input to STEREO OUT: .02% @ + 14 dBu (20 Hz to 2 kHz), GAIN knob: Min
• Pre Monitor Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB
• Internal Digital Effect: SPX algorithm 24 program
• Phantom Power Voltage: 48 V PA-10 Power adapter (included)
• Power Consumption: 22.9W
• Dimensions (W x H x D): 244 mm x 71 mm x 294 mm, 9.6 x 2.8 x 11.6-inch
• Net Weight: 2.1 kg (4.63 lbs)

Hum and Noise (20 Hz to 20 kHz)

• Equivalent Input Noise: -128 dBu (Mono Input Channel, RS 150 Ω, GAIN knob: Max)
• Residual Input Noise: -102 dBu (STEREO OUT, STEREO master knob: Min)

Input Channels

• Mono [MIC/LINE]: 4
• Mono/Stereo [MIC/LINE]: 0
• Stereo [LINE]: 3

Output Channels

• STEREO OUT: 2
• MONITOR OUT: 1
• PHONES: 1
• AUX SEND: 1
• GROUP OUT: 0

Bus

• STEREO: 1
• GROUP: 0
• AUX SEND: 1 (incl. FX)

Input Channel Function

• HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono)
• COMP (Mono)
• 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu
• Ratio: 1:1 to 4:1
• Output level: 0 dB to 7 dB
• Attack time: approx. 25 msec
• Release time: approx. 300 msec
• EQ
• High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• Mid: Gain: +15 dB, Frequency: Mono 250 Hz - 5 kHz peaking, Stereo: 2.5 kHz peaking
• Low: Gain: +15 dB/-15 dB, Frequency: 100 kHz shelving
• Peak LED (mono): LED turns on when EQ signal reaches 3 dB below clipping
