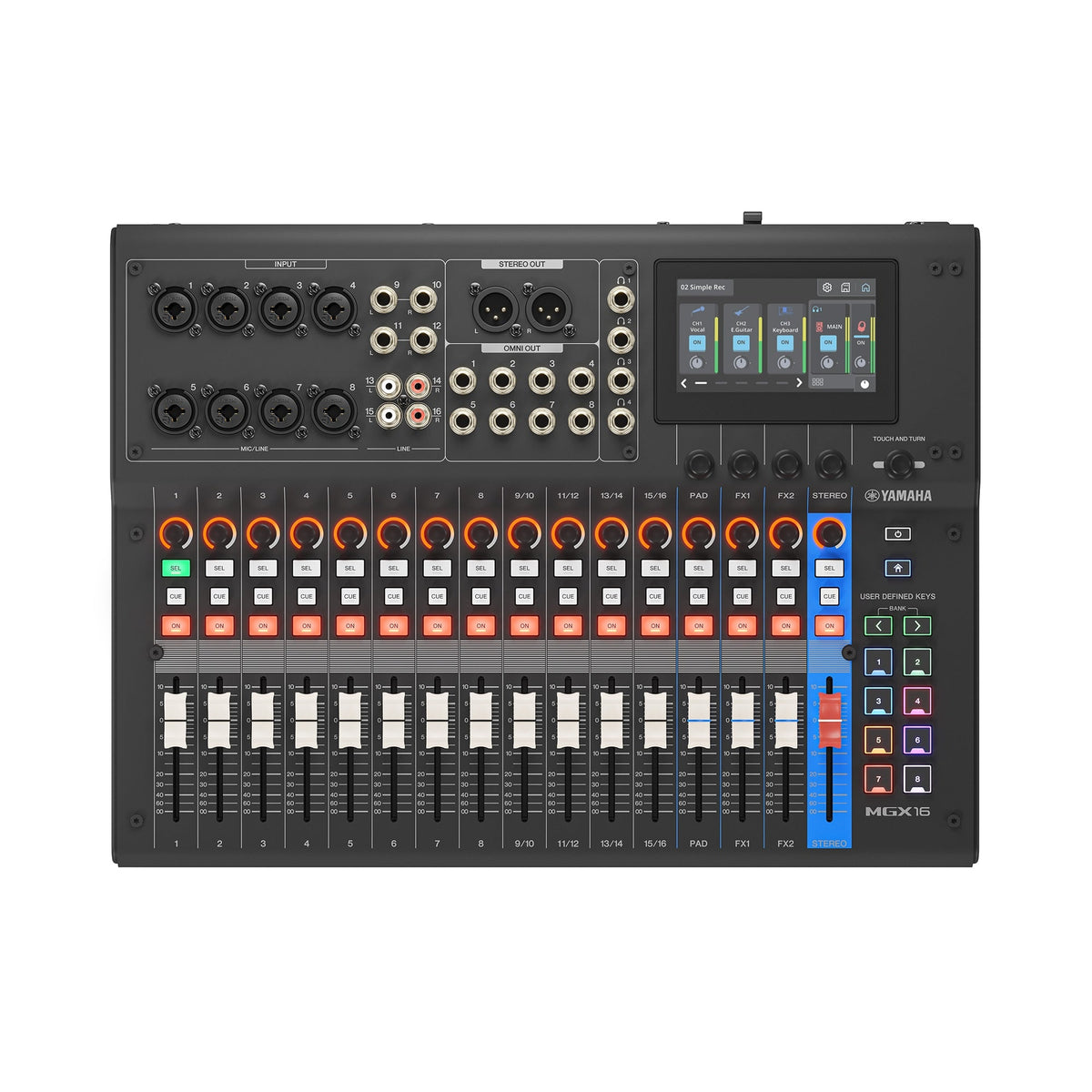

Yamaha MGX16 Digital Mixer - Black

Professional Sound in a Portable Format - The Yamaha MGX16 22-Channel Compact Digital Mixing Console

The portable MGX16 Standard compact digital mixing console delivers superb sound quality, intuitive setup, and pro-level features for live sound, installed systems, streaming, and recording. With a 4.3-inch touchscreen, hands-on controls, flexible I/O, and built-in DSP, the MGX16 is designed to get you dialed in fast—whether you’re mixing a band, running a venue, or capturing multitrack sessions on the go.

• 15 + 1 non-motorized fader configuration for fast hands-on mixing
• 4.3-inch touchscreen with five control knobs for intuitive operation
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 stereo + 8 mix
• Local inputs: 8 combo (mic/line), 4 TRS (line), 4 RCA (line)
• Local outputs: 2 XLR, 8 TRS phone, 4 headphone outputs
• USB MAIN: 22-in / 22-out audio interface (32-bit / 96 kHz)
• USB SUB: 2-in / 2-out audio interface (16-bit / 48 kHz)
• microSD card recording/playback: 16-track recording / 2-track playback (24-bit / up to 96 kHz)
• Bluetooth audio input: 2-channel (Bluetooth 5.0, A2DP)
• Built-in DSP for professional processing and latency-free monitoring
• Assistive tools: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall

From quick, repeatable scene changes to flexible routing and dual USB connectivity, the MGX16 can serve as the centerpiece of a modern hybrid setup—handling live mixing, multitrack recording, streaming, and playback duties in a compact footprint that’s easy to transport.

SPECIFICATIONS

• Model: MGX16
• Faders: 15 + 1 (non-motorized)
• Display: 4.3-inch touchscreen
• Control Knobs: 5
• Input Mixing Channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 stereo + 8 mix
• Local Inputs: 8 combo (mic/line); 4 TRS (line); 4 RCA (line)
• Local Outputs: 2 XLR; 8 TRS phone; 4 headphone outputs
• USB MAIN Interface: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB Interface: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Recording/Playback: 16-track recording / 2-track playback (24-bit / up to 96 kHz)
• Bluetooth Audio Input: 2-channel (Bluetooth 5.0, A2DP)
• Processing: built-in DSP for professional effects and low-latency monitoring
• Assistive Features: Auto Gain; Clip Safe; Simple/Standard mode; Scene Recall
• Included Accessories: Start Guide; Safety Guide; Steinberg Software License Cards x2 (Cubase AI + WaveLab Cast, Steinberg Plus); Basic FX Suite license card; AC power adapter (PA-300C)
• Net Weight: 4.7 kg
