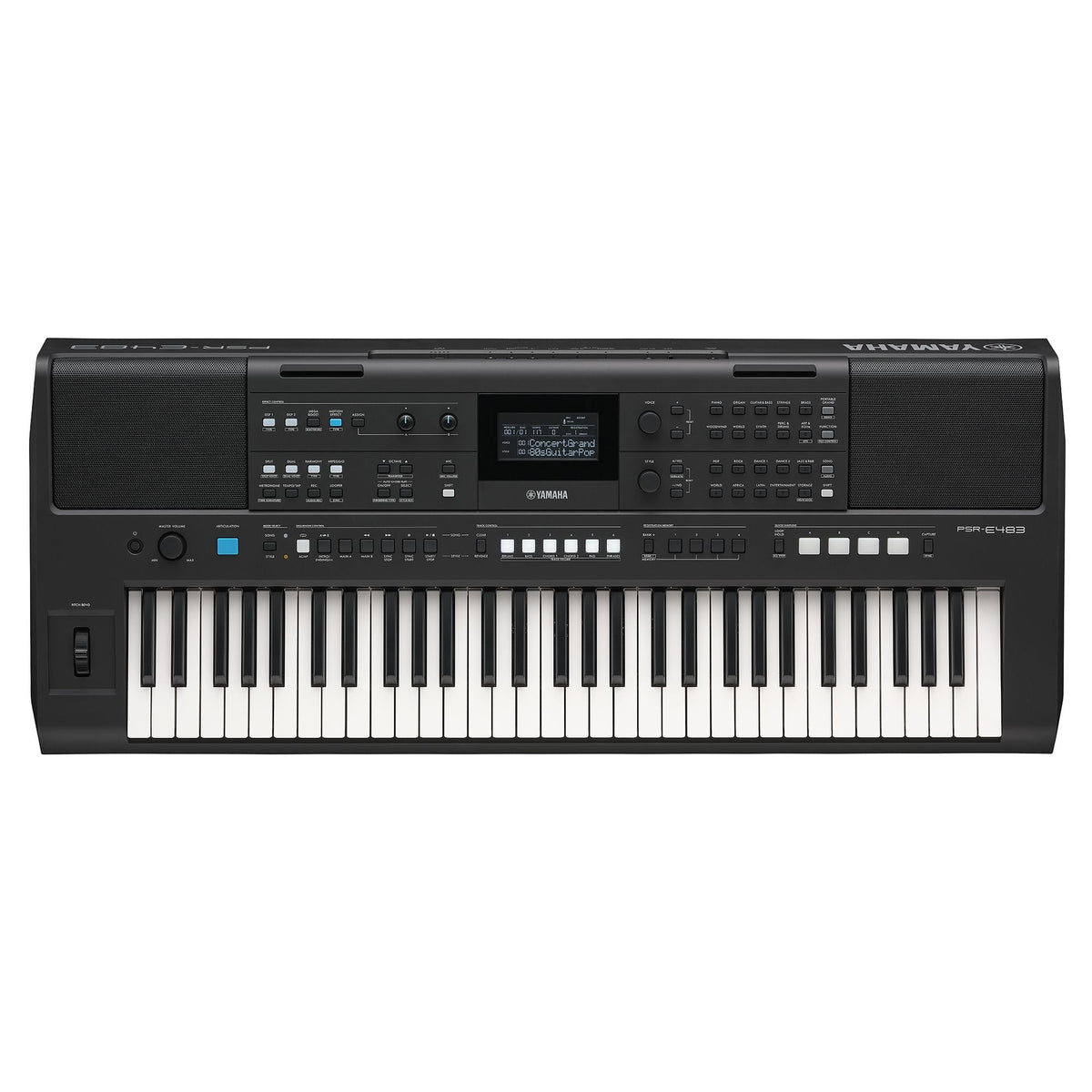

Yamaha PSR-E483 61-Key Portable Keyboard

Yamaha PSR-E483 61-Key Portable Keyboard with 860 Voices, 345 Styles, and Live Control

Designed for at-home players and aspiring musicians, the Yamaha PSR-E483 is a portable 61-key keyboard packed with expressive sounds and intuitive controls to make playing and creating effortless. With semi-professional sound and performance-ready features, it’s built for practicing, songwriting, and playing for an audience.

• 860 expressive Voices and 345 preset Styles to inspire creativity
• Live Control Knobs, Pitch Bend wheel, and clear display for fast, hands-on control
• Play any song or genre with quick access to Voices, Styles, and performance functions
• World Content Voices and Styles for a wide range of regional music
• DSP effects engine with 41 DSP1 and 12 DSP2 effects for tone shaping and texture
• Super Articulation Lite for realistic instrument details (guitar noise, breath, etc.)
• Motion Effect button for moving effects like phaser and tremolo
• Quick Sampling to capture short phrases and trigger them in time with the Style
• Looper function for building sections with looping phrases and progressions
• Auto Chord Play for hands-free chord progression playback while you solo
• USB TO DEVICE for storing/loading data with USB devices
• USB TO HOST (USB-C) for audio and MIDI to/from computers and smart devices
• Mic input with vocal effects for singing while you play
• Individual L/R outputs for easy connection to PA systems and studio gear
• Mega Boost button adds +6 dB of output volume for stronger projection
• Rec’n’Share support for recording and sharing performances via smart devices

From Afrobeats-inspired sounds to worship-ready organ tones, the PSR-E483 is built to support your style with global Voices, deep effects, and modern workfl

SPECIFICATIONS

• Dimensions (W × H × D): 992 × 136 × 404 mm (39-1/16" × 5-3/8" × 15-7/8")
• Weight: 7.0 kg (15 lb, 7 oz) (not including batteries)
• Packing Box (W × H × D): 1068 × 216 × 500 mm (42-1/16" × 8-1/2" × 19-11/16")

• Keyboard: 61 keys, organ-style
• Touch Response: Yes (Soft, Medium, Hard, Off)
• Display: LCD (backlit)
• Display Language: English
• Pitch Bend: Yes
• Modulation: No
• Articulation Switches: Yes
• Control Knobs: 2

• Tone Generating Technology: AWM Stereo Sampling
• Max Polyphony: 64
• Preset Voices: 860 (322 Voices + 40 Drum/SFX Kits + 40 Arpeggio Voices + 458 XGlite Voices)
• Featured Voices: 15 Super Articulation Lite Voices
• GM Compatible: Yes
• XGlite Compatible: Yes

• Preset Styles: 345
• Fingering: Multi Finger, Smart Chord
• Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF
• One Touch Setting (OTS): Yes
• Auto Chord Play: 100 chord progressions + 10 user chord progressions
• Expansion Styles: 10
• Style Compatibility: Style File Format (SFF)

• DSP: DSP1 (41 types) + DSP2 (12 types)
• Motion Effect: 57 types
• Reverb: 15 types
• Chorus: 7 types
• Master EQ: 5 types
• Dual/Layers: Yes
• Split: Yes
• Melody Suppressor: Yes
• Harmony/Echo: 26 types
• Arpeggio: 164 types

• Preset Songs: 2
• User Song Recording: 10 songs
• Tracks: 6 (5 melody + 1 style)
• Data Capacity: Approx. 19,000 notes (total for all 10 songs)
• Playback Format: SMF (Formats 0 & 1)
• Recording Format: Original file format (SMF 0 conversion function)

• Max Recording Time: 80 minutes (approx. 0.9 GB) per song
• Playback Format: WAV (44.1 kHz, 16-bit, stereo)
• Recording Format: WAV (44.1 kHz, 16-bit, stereo)

• Sampling Type: Oneshot, Loop
• Samples: 4
• Sampling Time: Approx. 9.6 seconds
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original file format (16-bit, stereo)
• Sampling Rate: 44.1 kHz

• USB Audio Interface: 44.1 kHz, 16-bit, stereo
• Registration Memory: 4 buttons (x 8 banks) with Freeze
• Metronome: Yes
• Tempo Range: 11 – 280
• Transpose: -12 – 0 – +12
• Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button: Yes
• Scale Type: 5
• PIANO Button: Yes
• Looper: Yes
• Mega Boost: 2 steps (approx. +3 dB and +6 dB)

• Internal Memory: Approx. 1.72 MB
• External Drives: USB flash drive
• DC IN: 12 V
• AUX IN: Stereo mini jack × 1
• Headphones: Standard stereo phone jack × 1
• Foot Switch: Yes (Sustain, Arpeggio Hold, Sustain+Arpeggio Hold, Articulation)
• Expression Pedal: No
• USB TO DEVICE: Yes (USB Type-A)
• USB TO HOST: Yes (USB Type-C)
• LINE OUT: Standard stereo phone jacks (L/L+R, R)
• Microphone Input: Standard stereo phone jack × 1

• Amplifiers: 6 W × 2
• Speakers: 12 cm × 2

• AC Adaptor: PA-150 or equivalent recommended by Yamaha (DC 12V, 1.5 A)
• Batteries: Six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable batteries
• Power Consumption: 13 W (when using PA-150C AC adaptor)
• Auto Power Off: Yes (Disabled/5/10/15/30/60/120 minutes)

• Owner’s Manual
• Music Rest
• AC Adaptor (PA-150 or equivalent; may vary by region)
