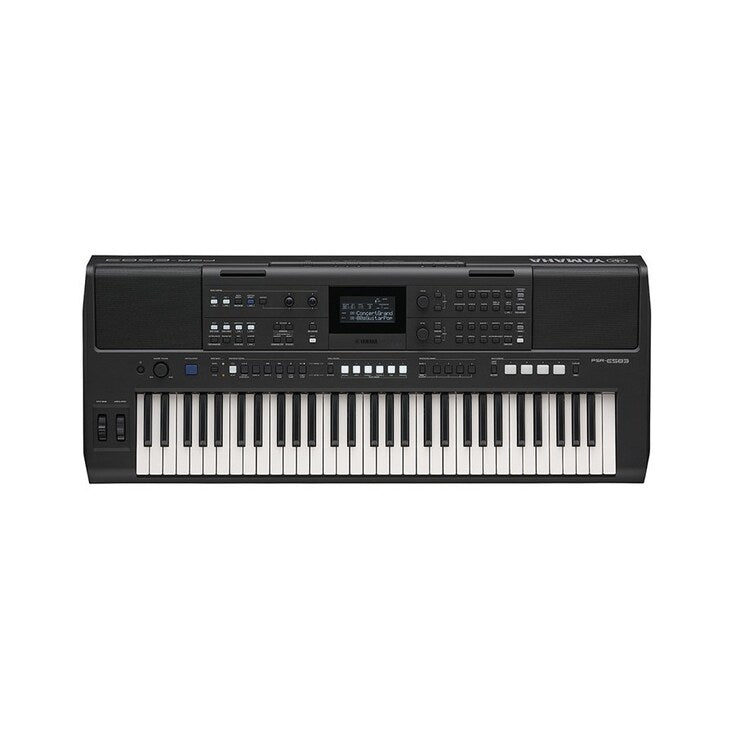

Yamaha PSR-E583 61-Key Portable Keyboard

Yamaha PSR-E583 Portable 61-Key Keyboard with 890 Voices, Modulation Wheel, and Performance Controls

Designed for aspiring musicians, the Yamaha PSR-E583 is a portable 61-key keyboard packed with expressive sounds, easy controls, and everything you need to take your playing to the next level. From learning at home to stepping into live performance, the PSR-E583 delivers semi-professional sound and modern creative tools in a streamlined, player-friendly layout.

• 890 expressive Voices and 345 preset Styles to inspire creativity
• Advanced performance control with Live Control Knobs, Modulation wheel, and Pitch Bend wheel
• Clear display and intuitive grid panel design for fast access to Voices, Styles, and key functions
• World Content Voices and Styles for region-specific and global music inspiration
• DSP effects engine with 41 DSP1 and 12 DSP2 effects for tone shaping, texture, and flexibility
• Super Articulation Lite for realistic instrument detail (string noise, breath, and more)
• MIDI Song to Style app support to convert standard MIDI files into full Styles with fills, intros, and endings
• Motion Effect button for instant moving effects like phaser and tremolo
• Arpeggio function automatically creates melodic patterns from held chords
• Expression pedal support for hands-free dynamics (sold separately)
• Quick Sampling to record and trigger short phrases in time with the Style
• Looper function to build sections by recording and looping phrases and progressions
• Auto Chord Play for preset chord progressions so you can solo or experiment freely
• USB TO DEVICE for saving/loading data with USB drives
• USB TO HOST (USB-C) for audio and MIDI to/from computers and smart devices
• Mic input with vocal effects for singing while you play
• Individual L/R outputs for easy connection to PA systems and studio equipment
• Mega Boost adds +6 dB of output for stronger projection
• Rec’n’Share support for recording and sharing performances via smart devices

With powerful sound options, real-time performance controls, and stage-ready connectivity, the PSR-E583 is built to grow with you. Whether you’re practicing, writing, or playing out for the first time, it makes it easy to sound polished and stay creative.

SPECIFICATIONS

• Dimensions (W × H × D): 992 × 136 × 404 mm (39-1/16" × 5-3/8" × 15-7/8")
• Weight: 7.3 kg (16 lb, 1 oz) (not including batteries)
• Packing Box (W × H × D): 1068 × 216 × 500 mm (42-1/16" × 8-1/2" × 19-11/16")

• Keyboard: 61 keys, organ-style
• Touch Response: Yes (Soft, Medium, Hard, Off)
• Display: LCD (backlit)
• Display Language: English
• Pitch Bend: Yes
• Modulation: Yes
• Articulation Switches: Yes
• Control Knobs: 2

• Tone Generating Technology: AWM Stereo Sampling
• Max Polyphony: 64
• Preset Voices: 890 (352 Voices + 40 Drum/SFX Kits + 40 Arpeggio Voices + 458 XGlite Voices)
• Featured Voices: 19 Super Articulation Lite Voices
• GM Compatible: Yes
• XGlite Compatible: Yes

• Preset Styles: 345
• Fingering: Multi Finger, Smart Chord
• Style Control: ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF
• One Touch Setting (OTS): Yes
• Auto Chord Play: 100 chord progressions + 10 user chord progressions
• Expansion Styles: 10
• Style Compatibility: Style File Format (SFF)

• DSP: DSP1 (41 types) + DSP2 (12 types)
• Motion Effect: 57 types
• Reverb: 15 types
• Chorus: 7 types
• Master EQ: 5 types
• Dual/Layers: Yes
• Split: Yes
• Melody Suppressor: Yes
• Harmony/Echo: 26 types
• Arpeggio: 164 types

• Preset Songs: 2
• User Song Recording: 10 songs
• Tracks: 6 (5 melody + 1 style)
• Data Capacity: Approx. 19,000 notes (total for all 10 songs)
• Playback Format: SMF (Formats 0 & 1)
• Recording Format: Original file format (SMF 0 conversion function)

• Max Recording Time: 80 minutes (approx. 0.9 GB) per song
• Playback Format: WAV (44.1 kHz, 16-bit, stereo)
• Recording Format: WAV (44.1 kHz, 16-bit, stereo)

• Sampling Type: Oneshot, Loop
• Samples: 4
• Sampling Time: Approx. 9.6 seconds
• Sampling Sources: AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format: Original file format (16-bit, stereo)
• Sampling Rate: 44.1 kHz

• USB Audio Interface: 44.1 kHz, 16-bit, stereo
• Registration Memory: 4 buttons (x 8 banks) with Freeze
• Metronome: Yes
• Tempo Range: 11 – 280
• Transpose: -12 – 0 – +12
• Tuning: 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button: Yes
• Scale Type: 5
• PIANO Button: Yes
• Looper: Yes
• Mega Boost: 2 steps (approx. +3 dB and +6 dB)

• Internal Memory: Approx. 1.72 MB
• External Drives: USB flash drive
• DC IN: 16 V
• AUX IN: Stereo mini jack × 1
• Headphones: Standard stereo phone jack × 1
• Foot Switch: Yes (Sustain, Arpeggio Hold, Sustain+Arpeggio Hold, Articulation)
• Expression Pedal: Yes
• USB TO DEVICE: Yes (USB Type-A)
• USB TO HOST: Yes (USB Type-C)
• LINE OUT: Standard stereo phone jacks (L/L+R, R)
• Microphone Input: Standard stereo phone jack × 1

• Amplifiers: 12 W × 2
• Speakers: 12 cm × 2

• AC Adaptor: PA-300C (DC 16 V, 2.4 A)
• Batteries: Six "AA" size alkaline (LR6), manganese (R6) or Ni-MH rechargeable batteries
• Power Consumption: 13 W (when using PA-300C AC adaptor)
• Auto Power Off: Yes (Disabled/5/10/15/30/60/120 minutes)

• Owner’s Manual
• Music Rest
• AC Adaptor PA-300C (may vary by region)
• Power Cord (may vary by region)
