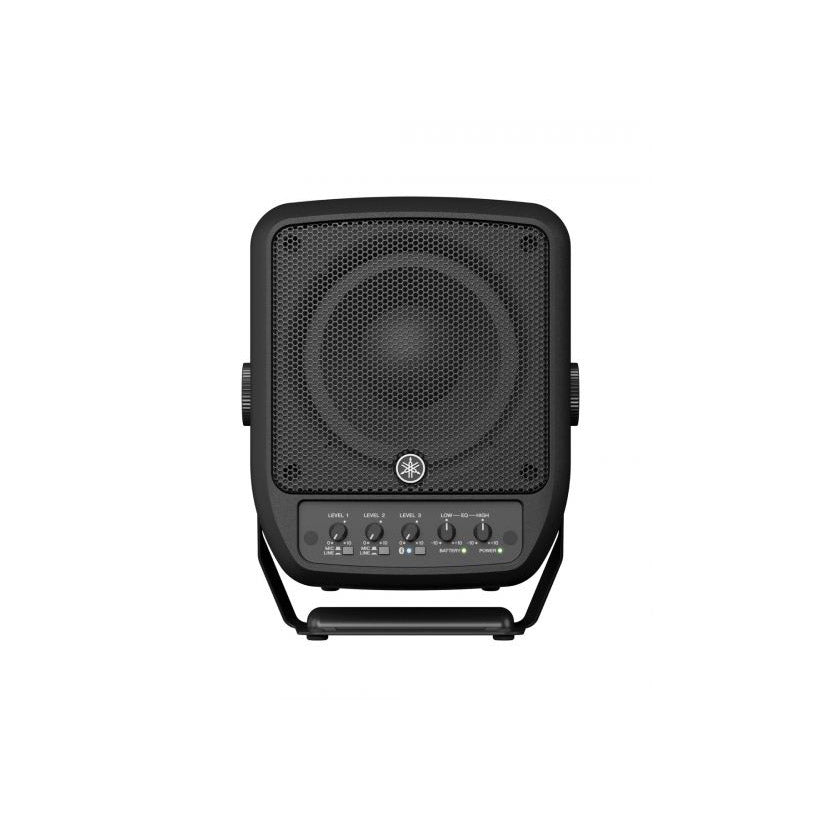

Yamaha STAGEPAS 100BTR Battery-powered Portable PA System

Expand Your Range and Extend Your Reach - Yamaha STAGEPAS 100BTR Battery-powered Portable PA System Performance Bundle

The STAGEPAS 100BTR portable PA system strikes a perfect balance between high-quality sound and ultimate portability, allowing you to turn virtually any location into your own intimate live stage. Available in two versions, one with a battery and one without, the lightweight, durable design, effortless operation, and astonishing sound of the STAGEPAS 100BTR will help you reach your audience like never before.

• 100 W Class-D amplifier
• 1.4” HF + 6.5” LF high-quality coaxial compression driver using a FIR filter for the crossover
• 3-channel mixer (2 monaural mic/line + 1 line)
• Equipped with a 2-band master EQ
• Compatible with Hi-Z input (Channel 2 only)
• Equipped with mix-out
• Carrying handle doubles as an adjustable stand
• Compatible with audio accompaniment over Bluetooth
• Optional carrying bag (BAG-STP100) available for convenient transport
• Internal lithium-ion battery


SPECIFICATIONS

• Type: 2-way Bi-amp Powered Speaker with mixer
• Inputs:
  • INPUT 1: Combo (mic/line)
  • INPUT 2: Combo (mic/line)
  • INPUT 3: Stereo Mini x1 (line)
• Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix)
• Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Mixing channels: 3
• Input channel functions: Hi-Z: CH2
• Output channel functions: 2 Band EQ
• Speaker type: Coaxial speaker with compression driver
• Frequency range (-10dB): 70 Hz – 20 kHz
• Coverage area: H90ﾟ x V90ﾟ
• Crossover: 1.8 kHz (FIR-X)
• Maximum output level (1m; on axis): 120 dB SPL *1
• Components:
  • LF: 6.5" Cone, 1.7" voice coil
  • HF: 1" throat compression driver, 1.4" voice coil
• Amplifier class: Class-D
• Power rating:
  • Dynamic: 100 W (LF: 93 W, HF: 7 W)
• Cooling: Natural convection (no fan)
• Power consumption: 10 W (Idle), 30 W (1/8 power)
• Power requirements: 100-240 V 50/60 Hz
• Battery:
  • Type: Rechargeable Lithium ion battery pack
  • Capacity: 60 Wh
  • Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours
  • Charging Time: Approx. 2.5 hours
• Cabinet material: Plastic (PP)
• Handle: Bottom x1 (Rotatable)
• Flying and mounting hardware: 1 × 3/8", depth 12 mm (center of handle)
• Dimensions (W x H x D): 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle
• Weight: 5.5 kg (12.1 lbs), without AC adaptor
• Accessories: Power cord x 1, AC adaptor (PA-500) x 1
• Options: Carrying bag: BAG-STP100
