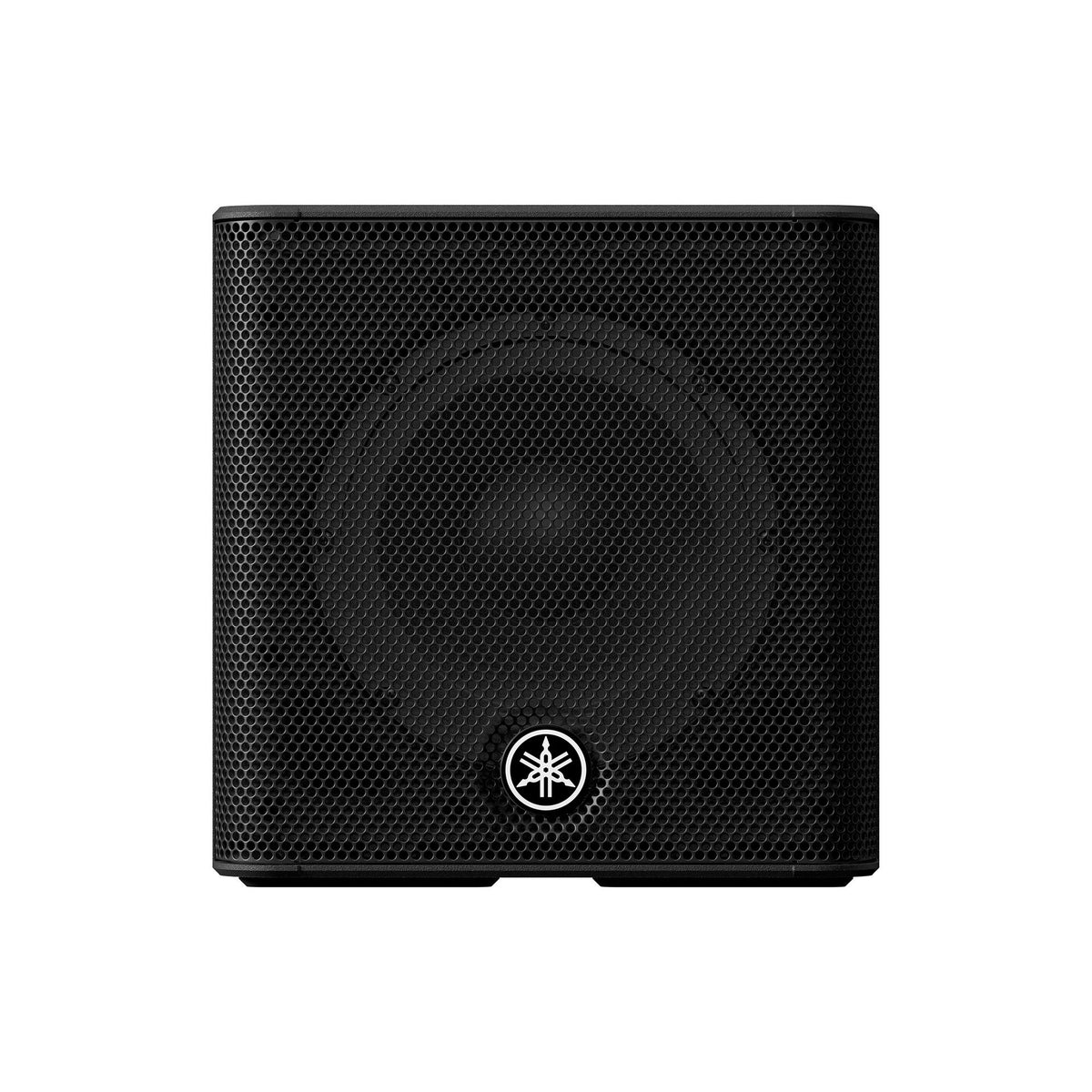

Yamaha STAGEPAS 200BTR Battery-powered Portable PA System with Bluetooth

Move Your Audience with the Yamaha STAGEPAS 200BTR Battery-powered Portable PA System with Bluetooth

A portable PA system equipped with a 180 W power amp, coaxial compression driver with 1.4” voice coil HF and 8” cone LF, a 5-channel digital mixer, and sold together with a high-capacity lithium-ion battery.

• 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
• 1.4” HF + 8” LF high-quality coaxial compression driver
• 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
• Main output multi-band compressor “MODE”
• 1-knob EQ/preset for each channel
• High-grade SPX digital reverb (4 program, parameter control), delay, chorus
• Hi-Z input
• Equipped with link-out/monitor out
• Supplied rubber stand allows inclining at 30 or 60 degrees
• Compatible with audio streaming via Bluetooth
• Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
• Optional BTR-STP200 battery included
• Optional CASE-STP200 carry case for convenient carrying

SPECIFICATIONS

• Type: 2-way Bi-amp Powered Speaker with mixer
• Mixing Capability: Mixing channels 5 (Mono x3 + Stereo x1)
• Input Channel Functions: Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
• Output Channel Functions: MODE (SPEECH/MUSIC/CLUB)
• I/O Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
• Outputs: Monitor/Link out x1
• Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
• Control and Others: STAGEPAS Controller (iOS/Android app)
• On-Board Processors: DSP SPX digital reverb (4 program, parameter control), delay, chorus
• Speaker Type: Coaxial speaker with compression driver
• Frequency Range (-10dB): 60 Hz – 20 kHz
• Coverage Area: H90ﾟ x V90ﾟ
• Crossover: 2.0 kHz
• Maximum Output Level (1m; on axis): 125 dB SPL
• Components: LF 8" Cone, 2.0" voice coil; HF 1" throat compression driver, 1.4" voice coil
• Amplifier Class: Class-D
• Power Rating: Dynamic 180 W (LF: 150 W, HF: 30 W)
• Cooling: Natural convection (no fan)
• Power Consumption: 10 W (Idle), 20 W (1/8 power)
• Power Requirements: 100-240 V 50/60 Hz, or 29.6 Vdc
• Battery:
  • Type: Rechargeable Lithium ion battery pack
  • Capacity: 79.92 Wh (2700 mAh, 29.6 V)
  • Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
  • Charging Time: Approx. 4 hours
• Cabinet Material: Plastic (ABS)
• Handle: Top x1
• Pole Socket: Φ35 mm x1 (Side)
• Floor Monitor Angle: 30° or 60°
• Dimensions (W x H x D): 300 x 308 x 301 mm (11.8" x 12.1" x 11.9")
• Weight: 12.5 kg (27.6 lbs) (Including battery)
• Accessories: Power cord x 1, Battery x 1
• Options: Battery: BTR-STP200, Carry case: CASE-STP200
