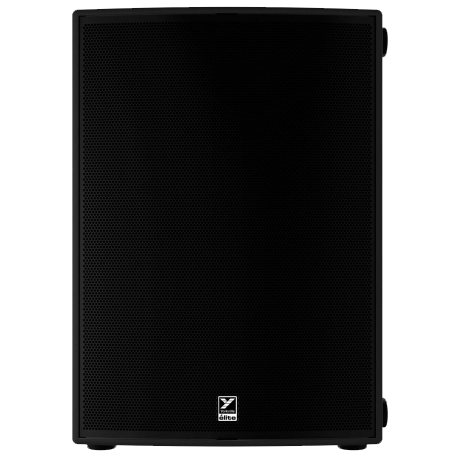

Yorkville EL18S Elite 18-Inch Powered Subwoofer

Deep, Powerful Low-End – The Yorkville EL18S Elite 18-Inch Powered Subwoofer

The Yorkville EL18S is an 18-inch powered subwoofer designed to deliver high output and deep low-frequency performance for professional live sound applications. With 3200 watts of peak power, 1600 watts program power, a rugged birch plywood cabinet, and flexible input and output connectivity, the EL18S is built for demanding mobile, venue, and installed sound systems.

• 3200 W peak power and 1600 W program power
• 18-inch woofer with 4-inch voice coil and ceramic magnet
• 140 dB peak SPL and 134 dB continuous SPL
• 35 Hz - 100 Hz frequency response
• Onboard limiter helps protect the system during high-output operation
• 2 combo XLR/1/4-inch TRS inputs
• 2 XLR high-pass outputs and 2 XLR full-range link outputs
• powerCON TRUE1 compatible input and output connectors
• 15 mm birch plywood construction with powder-coated steel grille
• Top and side pole-mount adapters for flexible system configuration
• Integrated rigid and swivel casters for easier transport
• Made in Canada

High-Output 18-Inch Performance

The EL18S delivers 3200 watts of peak power and 1600 watts of program power through an 18-inch woofer with a 4-inch voice coil. With a frequency response extending down to 35 Hz and maximum output up to 140 dB peak, it provides the low-frequency impact needed for live music, DJs, venues, and professional sound reinforcement systems.

Flexible System Connectivity

The rear panel includes two combo XLR/1/4-inch TRS inputs, two XLR high-pass outputs, and two XLR full-range link outputs. This allows the EL18S to integrate easily into full-range PA systems while providing filtered outputs for compatible top cabinets.

Rugged Birch Plywood Enclosure

The cabinet is constructed from 15 mm birch plywood and finished with textured paint for durability. A powder-coated steel grille protects the woofer, while multiple integrated handles and casters help simplify transportation and setup.

Flexible Placement Options

Top and side pole-mount adapters allow the EL18S to support different system layouts, including traditional vertical configurations and alternative placement options. Two rigid casters and two swivel casters provide easier movement in touring and event environments.

SPECIFICATIONS

System

• System Type: Powered subwoofer
• Power Rating: 3200 W Peak / 1600 W Program
• Maximum SPL: 140 dB Peak / 134 dB Continuous
• Frequency Response: 35 Hz - 100 Hz (+/-3 dB)
• Crossover Frequency: 100 Hz

Driver

• LF Driver: 18-inch woofer
• Voice Coil: 4 inches
• Magnet Type: Ceramic

Connections

• Inputs: 2 x Combo XLR / 1/4-inch TRS
• Outputs: 2 x XLR High-Pass
• Link Outputs: 2 x XLR Full Range
• Power Connections: powerCON TRUE1 compatible input and output

Controls and Indicators

• Level Controls: Yes
• Onboard Limiter: Yes
• LED Indicators: Power, Activity, Protection

Power

• Power Consumption: 4 A typical / 10 A maximum

Construction

• Enclosure Material: 15 mm Birch Plywood
• Grille: Powder-Coated Steel
• Finish: Textured Paint
• Pole Mount Adapter: 1 x Top, 1 x Side
• Flying Hardware: No

Transport

• Wheels: 2 x Rigid Casters, 2 x Swivel Casters
• Handles: 1 x Top, 4 x Side, 1 x Bottom

Dimensions and Weight

• Dimensions (D x W x H): 24.8 x 25.7 x 35.7 inches
• Depth with Casters: 29.8 inches
• Metric Dimensions: 63 x 65.3 x 90.7 cm
• Depth with Casters: 75.7 cm
• Weight: 176.5 lb / 80 kg
