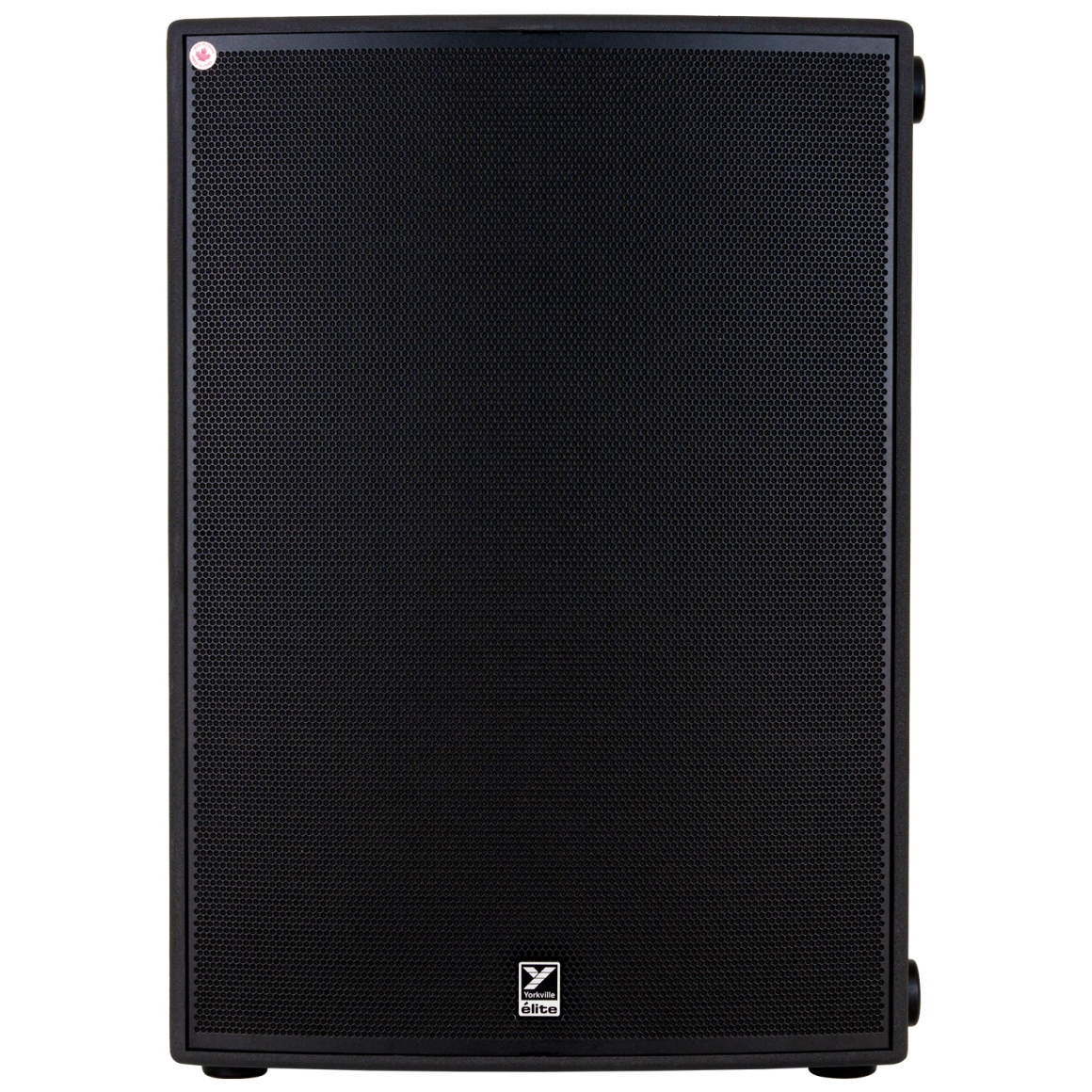

Yorkville EL24S 24-Inch 5000-Watt Subwoofer

Deep, Powerful Bass – The Yorkville Elite EL24S 24-Inch Powered Subwoofer

Streamlined and straightforward, Yorkville's new Elite range offers essential features and premium components to deliver high output and exceptional sound quality for professional users.

• 5000 W Peak Power (2500 W Program)
• 143 dB Max SPL (137 dB Continuous)
• 24-inch Neodymium Woofer with 6-inch Voice Coil
• 30 Hz - 100 Hz Frequency Response
• Onboard Limiter
• 2x XLR Inputs with Full-Range Parallel Outputs
• 2x High-Passed XLR Outputs
• 15 mm Birch Plywood Construction
• Made in Canada

The EL24S is the world’s first 24-inch active subwoofer for live sound. As groundbreaking as it is earthshaking, it features a neodymium driver with a 2-foot diameter and 6-inch voice coil. It delivers 5000 watts of peak power (2500 watts program), 143 dB peak SPL (137 dB continuous), and a frequency response of 30 Hz – 100 Hz. The result is uniquely deep and powerful bass that must be experienced to be believed.

The rugged cabinet is constructed from high-quality birch and features pole mount adapters on the top and side. The rear panel features two XLR inputs, full-range and high-passed XLR outputs, and powerCON TRUE1 compatible input and output connectors.

If a more compact option is needed, Yorkville also offers the EL18S and EL21S. But if the lowest lows are needed, then size matters, and the EL24S is truly unlike anything listeners have heard before.

Like all Elite loudspeakers, the EL24S is proudly made at the Yorkville factory outside of Toronto, Canada.

SPECIFICATIONS

• System Type: Powered subwoofer
• Crossover Frequency: 100 Hz
• Power Cable: powerCON TRUE1 compatible connectors (input/output)
• Power Consumption: 6.5A, 12A (typ/max)
• Level Controls: Yes
• LED Indicators: Power, activity, protection
• Wheels: 2x rigid, 2x swivel casters
• Bar Handles: 2x top, 6x side, 2x bottom
• Flying Hardware: No
• Pole Mount Adapter: 1x top, 1x side
• Grille: Powder-coated steel
• Covering/Finish: Textured paint
• Dimensions (DWH): 31.4 x 27.9 x 39 inches (depth with casters 36.6 inches) / 79.8 cm x 70.9 cm x 99.1 cm (depth with casters 93 cm)
• Weight: 240 lbs / 109 kg
