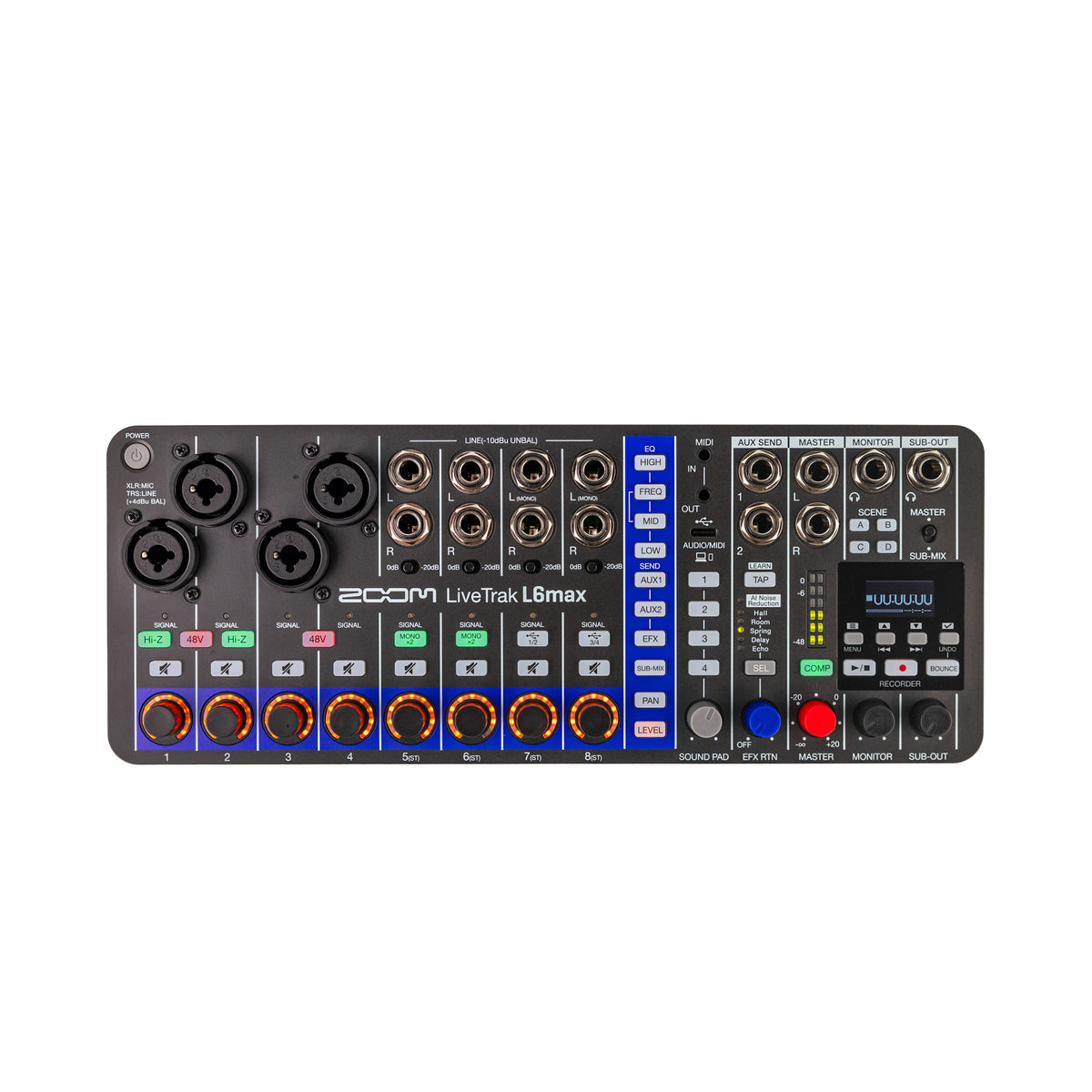

Zoom LiveTrak L6max 12-Channel Mixer and Recorder for Music, Streaming, and Podcasts

Big Mixer Energy – The LiveTrak L6max 12-Channel Mixer and Recorder

The LiveTrak L6max is packed with all the features you’d expect from a full-size mixer, plus a multi-track recorder. Compact, battery powered, and versatile, it’s ready to be the centerpiece of your live show, rehearsal, or podcast.

• 12 channels with 4 combo inputs (2 with Hi-Z) and 8 line inputs
• Two headphone outputs with customizable Sub-Out mix
• -20 dB PAD switches on channels 5–8 for loud sources
• High-contrast OLED display for easy navigation
• AI Noise Reduction for cleaner recordings
• 32-bit float recording with dual-AD converters on channels 1–4
• 3-band EQ on every channel
• Onboard effects: Reverb, Delay, and Echo with TAP tempo
• Advanced master compressor for punch and saturation
• USB audio interface: 32-bit float 12-in / 4-out, with DAW control surface mode
• Pro-level mixer functions including AUX sends, scene memory, sound pads, and MIDI I/O
• Multiple power options: AA batteries, USB bus power, or mobile battery pack
• Eurorack mountable with optional ERL-6 rack ears

Powerful Multi-Tracking

14 Tracks of Recording

Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB. Projects can be saved and recalled for mixing anytime.

Unlimited Overdubbing

Mix and bounce tracks to the dedicated bounce track, freeing up channels to keep adding layers. Undo and retry bounces as needed. All files are saved to SD for future mixing.

Pro-Level Mixer Functions

Flexible Routing with AUX Sends

Two AUX sends with pre/post-fader options for FX loops and monitor feeds.

Scene Memory

Store up to four mixes and recall them anytime with a single button.

Sound Pads with MIDI Sync

Trigger jingles, sound effects, or samples instantly. Sound pads sync to MIDI clock for live electronic performances.

MIDI I/O and USB MIDI

Connect external synths and grooveboxes or integrate with MIDI apps on computer and mobile devices.

Additional Features

• Customize pads, effects, and MIDI assignments with the free L6 Editor app
• Stay mobile with multiple powering options including batteries and USB
• Designed for Eurorack integration with optional hardware

SPECIFICATIONS

Inputs

• MIC/LINE (mono): 4
• LINE (stereo): 4
• AUX SEND (mono): 2
• MASTER (stereo): 1
• MONITOR (stereo): 1

Outputs

• SUB-OUT (stereo): 1
• Connectors: 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input Gain: Adjustment unnecessary (dual A/D converter circuits used)
• Input Impedance: XLR: 3.8 kΩ or more, TRS: 18 kΩ or more (Hi-Z off), 1 MΩ or more (Hi-Z on)
• Maximum Input Level: XLR: +4 dBu, TRS: +24 dBu
• Phantom Power: +48 V (channel total 20 mA or less)

LINE Inputs

• Connectors: 8 TS phone jacks
• Input Impedance: 30 kΩ or more
• Maximum Input Level: +4 dBu (PAD 0 dB), +24 dBu (PAD -20 dB)

AUX SEND

• Connectors: 2 TRS phone jacks (impedance balanced)
• Maximum Output Level: +9.5 dBu
• Output Impedance: 147 Ω

MASTER

• Connectors: 2 TRS phone jacks (balanced)
• Maximum Output Level: +15 dBu
• Output Impedance: 147 Ω

MONITOR / SUB-OUT

• Connector: TRS phone jack
• Maximum Output Level: 50 mW + 50 mW (63 Ω load)
• Output Impedance: 14.7 Ω

Buses

• MASTER: 1
• SUB-MIX: 1
• AUX SEND: 2

The Power of a Studio. The Freedom of a Compact Mixer.
